Plans of Bungalow O87

Family house O87

intro     floor plan    info
Modern 3 bedroom bungalow
The simple floor plan and optimized building structures predispose this house to easy self-construction.

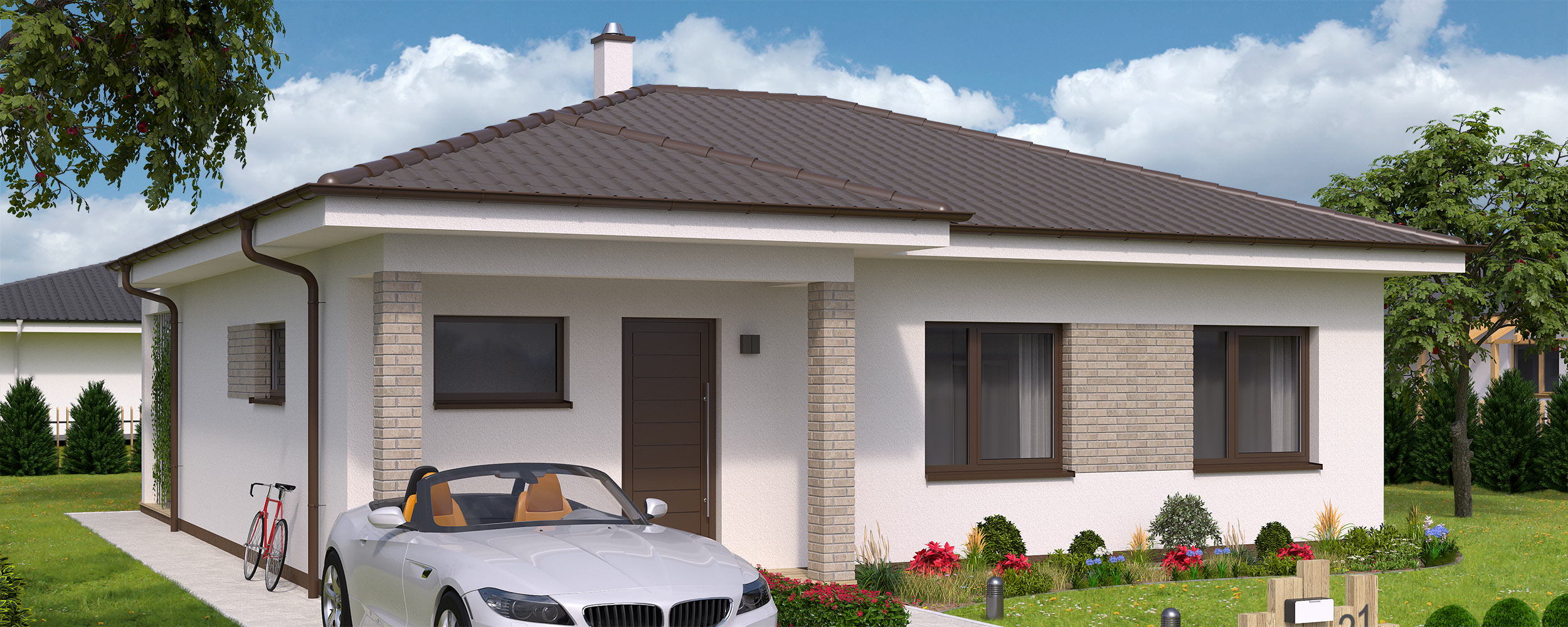

Bungalow O87 - View from street
Bungalow O87 - View from garden

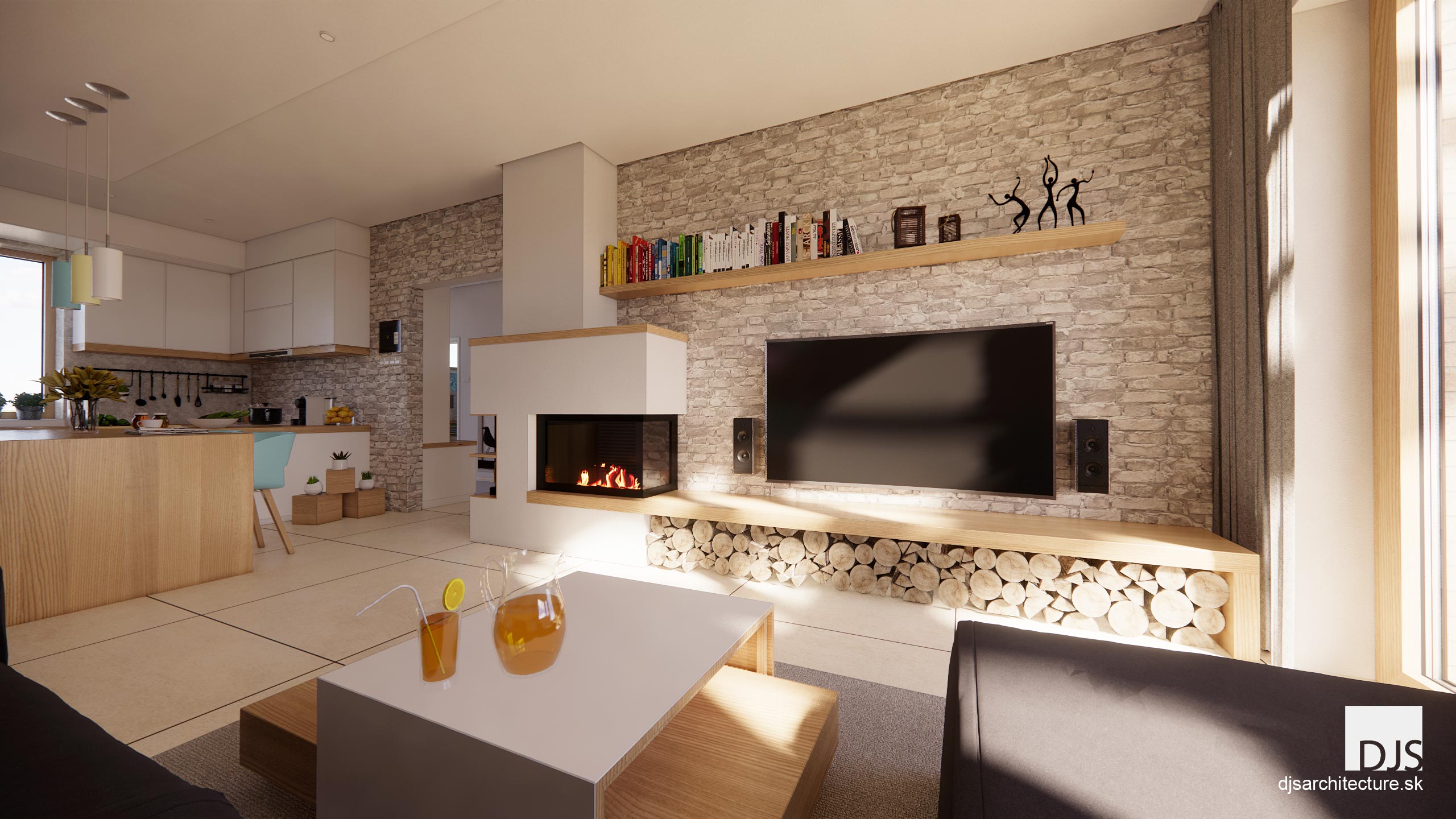

Bungalow O87 - Interior

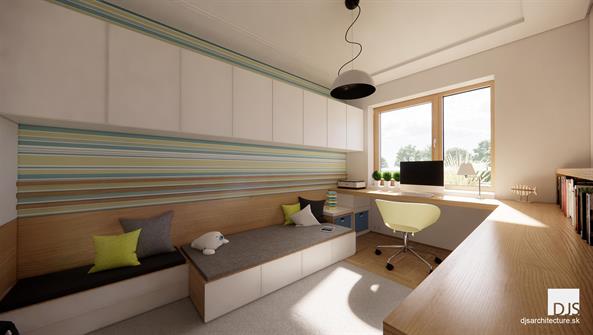

Bungalow O87 - Interior
Layout
House O87 is a three bedroom energy-saving bungalow. Simple and practical rectangular shape is complemented by overhanging roof over the entrance from the side of the street. The center of the layout consists of living room connected to the kitchen. This space is linked to the garden via patio and sliding door. Near the entrance to the house we concentrated technical spaces, toilet and bathroom, thus minimizing the costs of technical installations. The master bedroom is designed, for more privacy, away from children's bedrooms. If necessary, it is possible to situate the entrance to the house from the side. This house is also suitable for a simple self-build.

Technical information
Walls are designed from aerated concrete blocks, which can be easily switched for bricks during construction, if desired. The roof is a truss roof and we designed a storage space for seasonal items there. There is floor heating designed in the whole house.

Architectural features
The house is designed as a combination of white plaster and a stone cladding of beige color. The roofing is concrete of dark brown color, the windows are plastic of brown color.

Floor plan

If you would like to modify the floor plan, please contact us. Approximate prices of house modifications can be found in our price list of additional services.Mirrored version of house plan is included in price (optional).
Bungalow O87 - Floor plan
Bungalow O87 - Floor plan - Mirrored
Mirrored floor plan is displayed
Original floor plan is displayed

Parameters

Floor area
87.24 m2
Built-up area
103.74 m2
Roof height
5 225 mm
Roof slope
20°
Number of bedrooms
3
Exterior dimensions
11.4 m x 9.1 m
Material costs
47 000 €
Turnkey construction costs
85 000 €
Architectural study in pdf
80 €  (only digital files)
Architectural study in dwg
250 €  (only digital files)
Construction drawings price
1 100 €
Non-binding pre-order

Download more information

For each project you bought from us, we offer site plan drawing as well as the projects of all necessary connections for a discounted price. For further information, please refer to our price list of additional services
More information about this house
House plan O87 - More information
Download floor plan of this house
House O87 - Floor plan in pdf

Construction photos

Bungalow O87 - Under construction
Bungalow O87 - Under construction
Bungalow O87 - Under construction
Bungalow O87 - Under construction

Elevations

Bungalow O87 - Right elevation
Bungalow O87 - Front elevation
Bungalow O87 - Left elevation
Bungalow O87 - Back elevation
