Plans of Bungalow L75

Family house L75

intro     floor plan    info
Modern 2 bedroom bungalow
The energy saving bungalow in the "L" shape that is suitable for lots of minimal width 12.8m (clear distance of 2m on both sides).
Bungalow L75 - View from street
Bungalow L75 - View from garden
Layout
L75 is a two bedroom, energy-efficient bungalow in the shape of "L" that is suitable plots from the width of 12.8 meters (clear distance of 2,0m on both sides). The entrance is located on the leeward side created by the shape of the house. The entry hall contains decent storage space. The layout consists of living room connected to dining room and kitchen, which can be saparated by additional wall, if desired. The living room has direct access to the terrace through a glazed wall which also provides connection with the exterior. The house has low energy consumption for heating, optimized building construction and is suitable for self-build.

Technical information
Walls are designed from aerated concrete blocks, which can be easily switched for bricks during construction, if desired. The roof is a truss roof and we designed a storage space for seasonal items there. There is floor heating designed in the whole house.

Architectural features
The house is designed as a combination of white plaster and a stone cladding of beige color. The roofing is concrete of dark brown color, the windows are plastic of anthracite color.

Floor plan

If you would like to modify the floor plan, please contact us. Approximate prices of house modifications can be found in our price list of additional services.Mirrored version of house plan is included in price (optional).
Bungalow L75 - Floor plan
Bungalow L75 - Floor plan - Mirrored
Mirrored floor plan is displayed
Original floor plan is displayed

Parameters

Floor area
76.78 m2
Built-up area
92.48 m2
Roof height
4 650 mm
Roof slope
16°
Number of bedrooms
2
Exterior dimensions
8.8 m x 11.6 m
Material costs
44 000 €
Turnkey construction costs
80 000 €
Architectural study in pdf
80 €  (only digital files)
Architectural study in dwg
250 €  (only digital files)
Construction drawings price
1 100 €
Non-binding pre-order

Download more information

For each project you bought from us, we offer site plan drawing as well as the projects of all necessary connections for a discounted price. For further information, please refer to our price list of additional services
More information about this house
House plan L75 - More information
Download floor plan of this house
House L75 - Floor plan in pdf

Elevations

Bungalow L75- Right elevation
Bungalow L75 - Front elevation

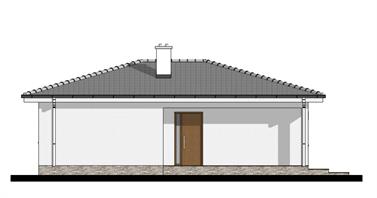

Bungalow L75 - Left elevation

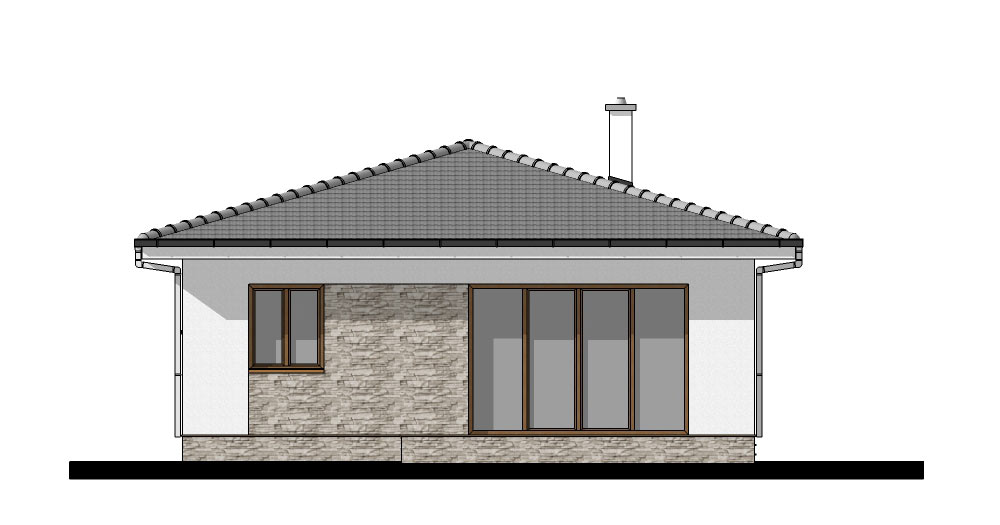

Bungalow L75 - Back elevation
