Plans of Bungalow L90

Family house L90

intro     floor plan    info
Modern 2 bedroom bungalow with L shaped floor plan
Low-energy bungalow in the shape of letter "L" that is suitable for sites of width from 14.7 m (clearance 2 m on both sides).
Bungalow L90 - View from street
Bungalow L90 - View from garden
Layout

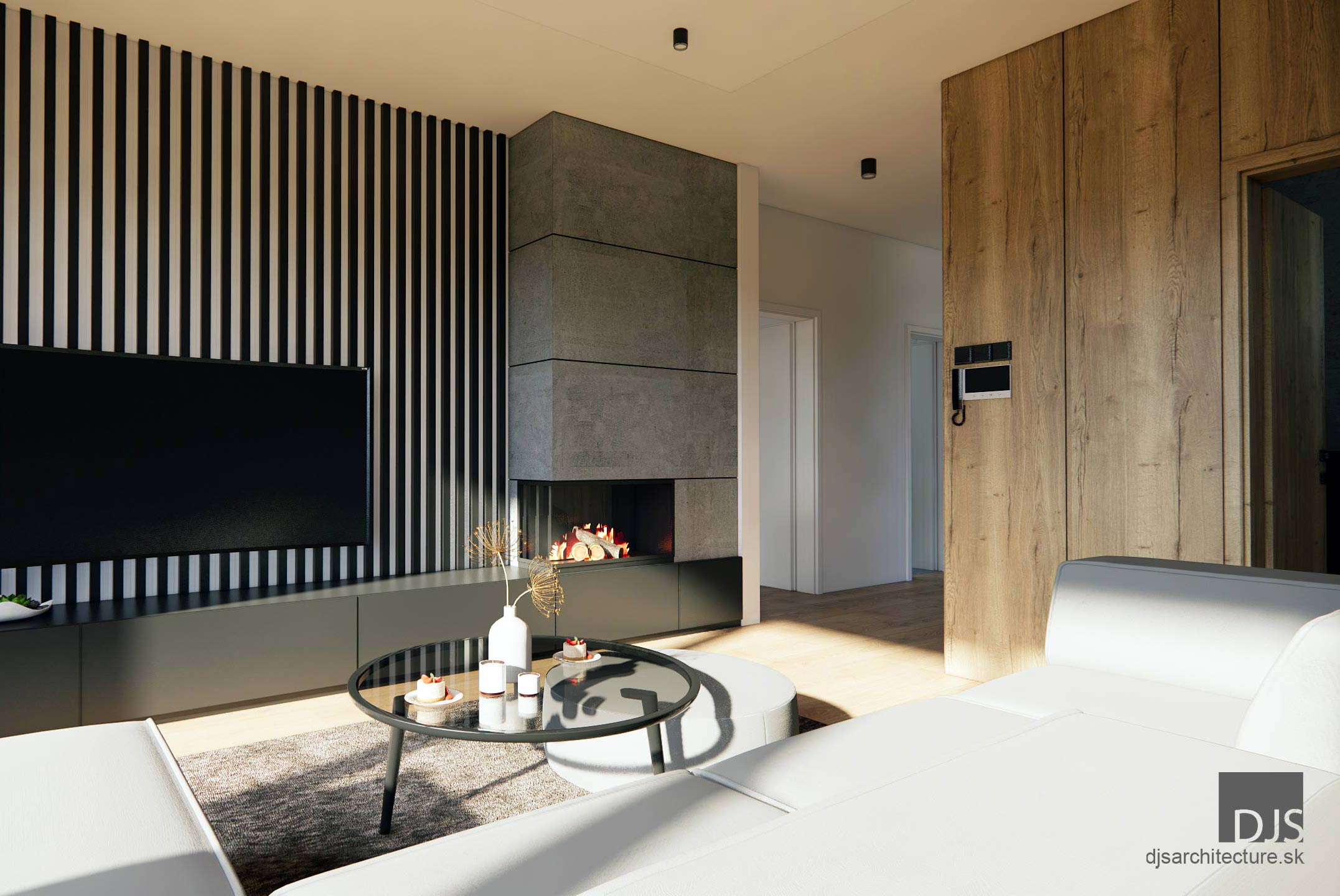

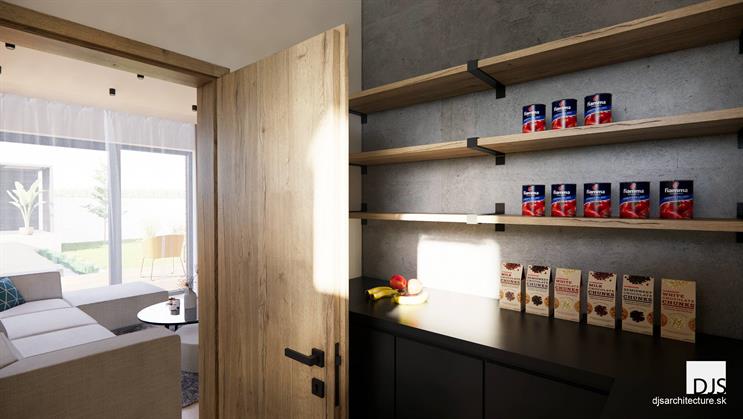

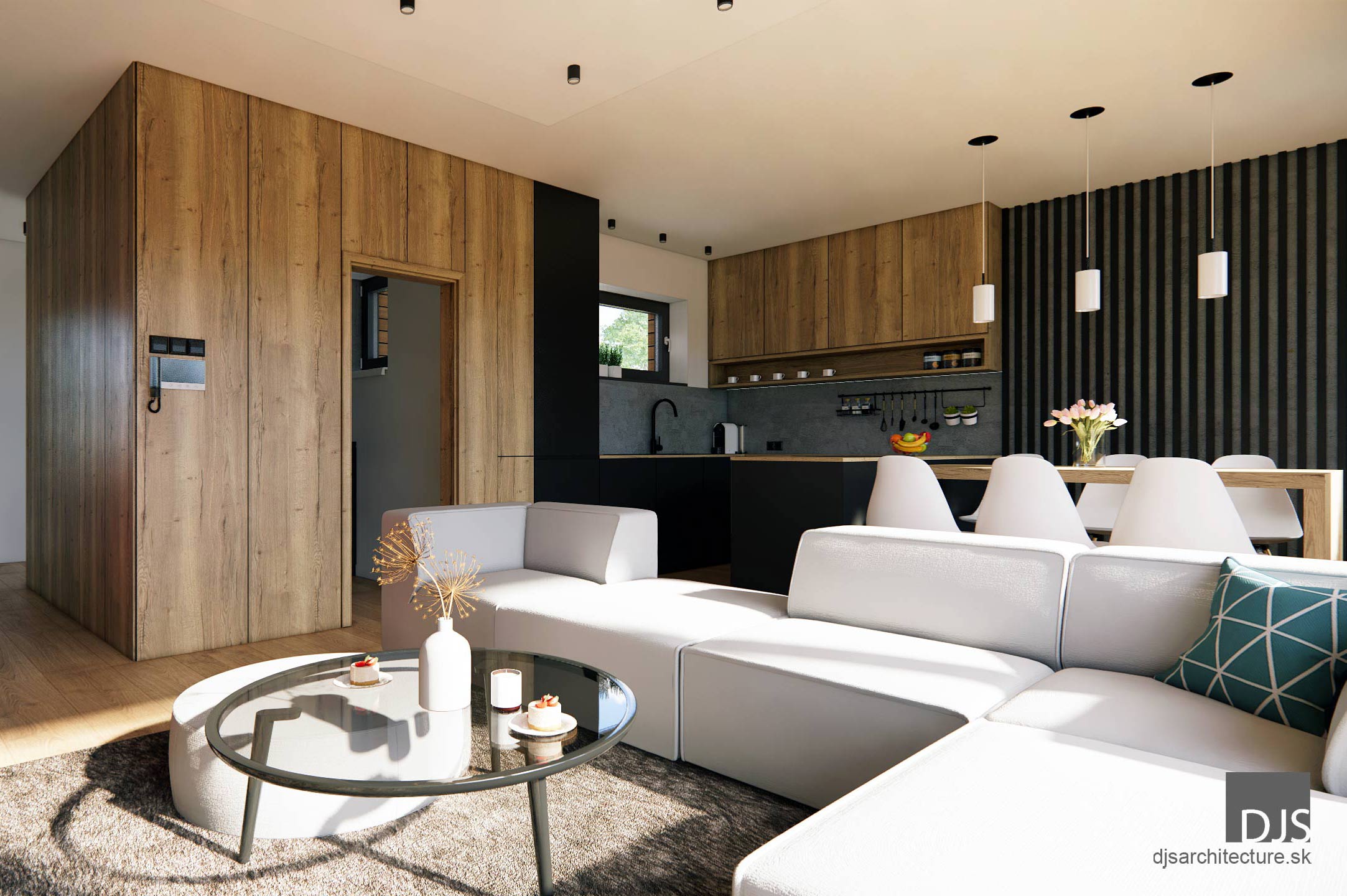

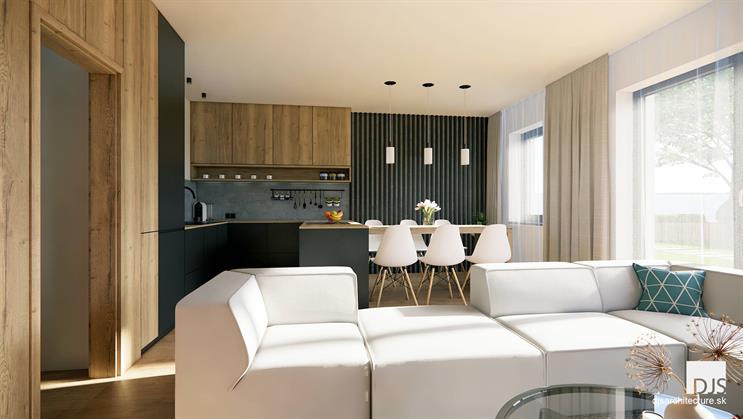

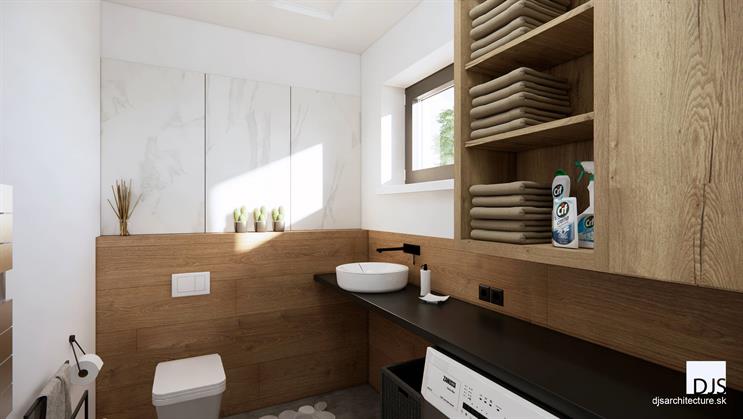

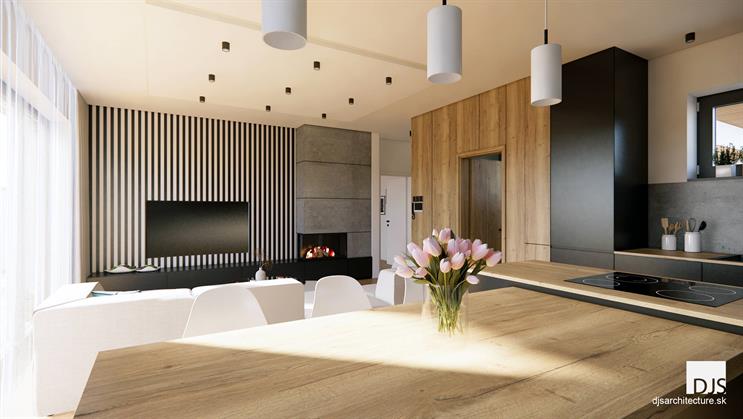

The entrance is located in the leeward side formed by the shape of a house. This space can be covered and used for parking. Entry hall contains appropriate storage space. Main living spaces consist of a living room combined with kitchen and dining room. There is direct visual contact between kitchen and street through a small window. The living room has direct access to the terrace through a glass wall, which at the same time provides optical connection with garden. Private areas of the house consist of two bedrooms with bathroom. The house is simple to construct.

Technical information

Walls are designed from aerated concrete blocks, which can be easily switched for bricks during construction, if desired. The roof is a truss roof and we designed a storage space for seasonal items there. There is floor heating designed in the whole house.

Architectural features
The house is designed as a combination of white plaster in combination with wood cladding. The roofing is concrete of grey color, the windows are plastic of anthracite color.

Floor plan

If you would like to modify the floor plan, please contact us. Approximate prices of house modifications can be found in our price list of additional services.Mirrored version of house plan is included in price (optional).
Bungalow L90 - Floor plan
Bungalow L90 - Floor plan - Mirrored
Mirrored floor plan is displayed
Original floor plan is displayed

Parameters

Floor area
87.79 m2
Built-up area
105.57 m2
Roof height
4 450 mm
Roof slope
25°
Number of bedrooms
2
Exterior dimensions
10.7 m x 11.9 m
Material costs
47 000 €
Turnkey construction costs
85 000 €
Architectural study in pdf
80 €  (only digital files)
Architectural study in dwg
250 €  (only digital files)
Construction drawings
1 100 €
Non-binding pre-order

Download more information

For each project you bought from us, we offer site plan drawing as well as the projects of all necessary connections for a discounted price. For further information, please refer to our price list of additional services
More information about this house
House plan L90 - More information
Download floor plan of this house
House L90 - Floor plan in pdf

Elevations

Bungalow L90 - Right elevation
Bungalow L90 - Front elevation

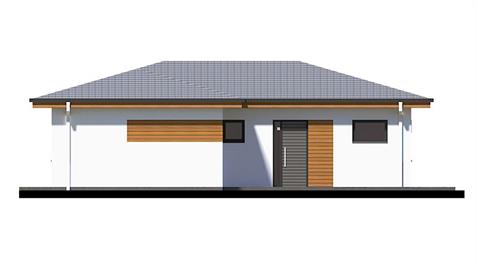

Bungalow L90 - Left elevation

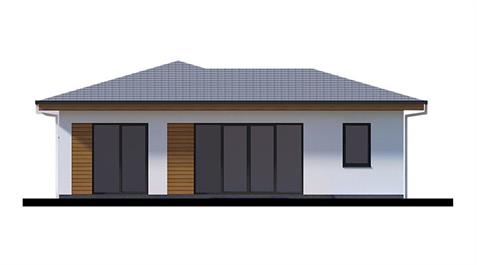

Bungalow L90 - Back elevation
