Plans of Bungalow i96

Family house i96

intro     floor plan    info
3 bedroom bungalow suitable for narrow sites
Energy-saving bungalow with a gabled roof suitable for zones with traditional family houses on narrow plots
Bungalow - i96 - View from the street

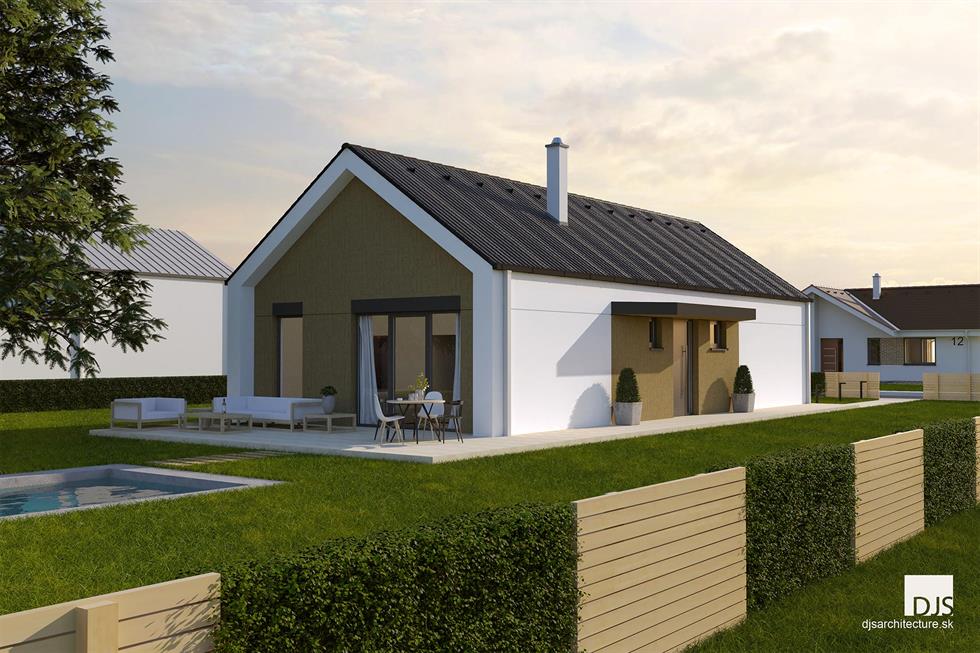

Bungalow - i96 - View from garden

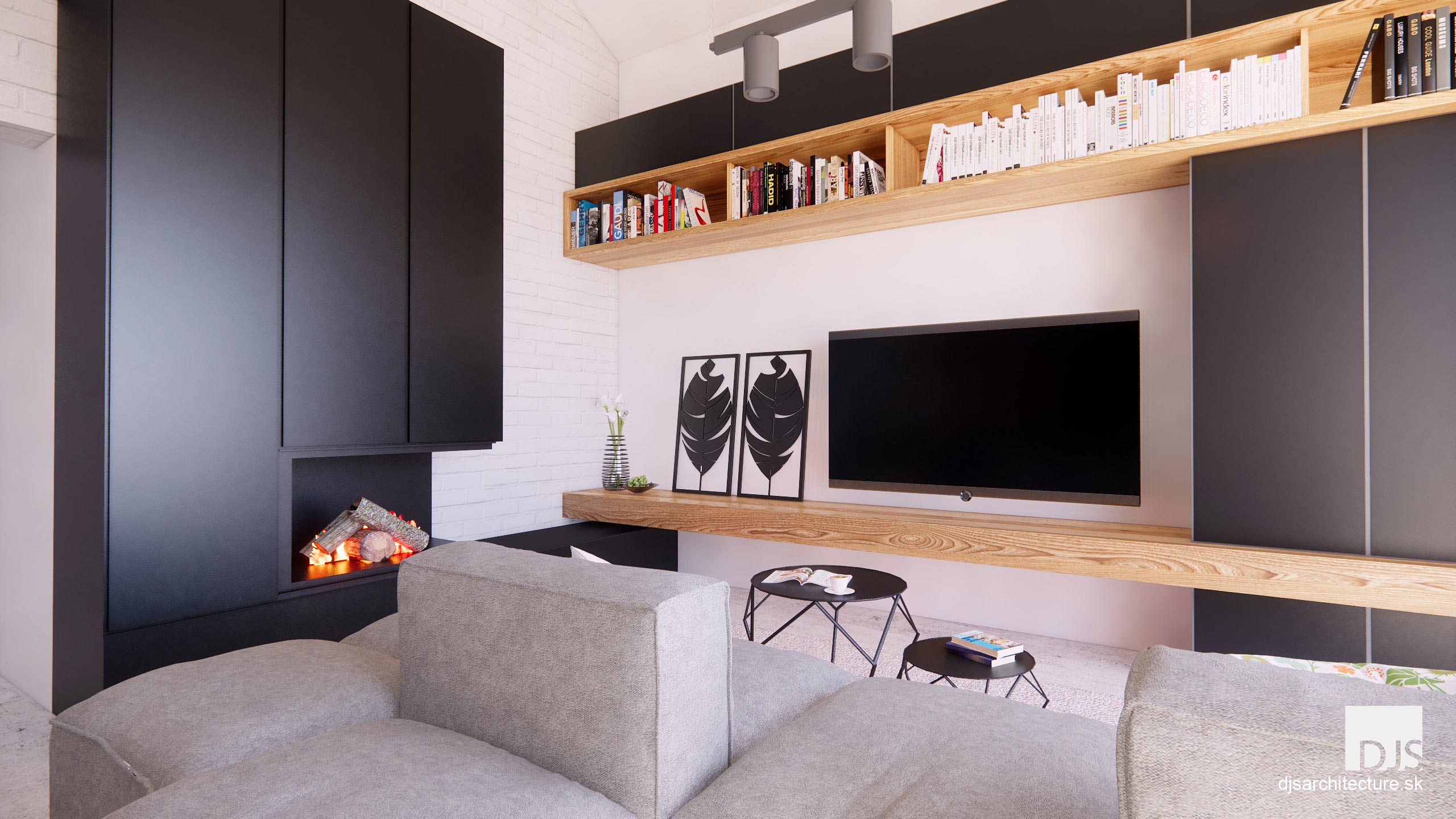

Bungalow - i96 - Living room
Bungalow - i96 - Living room
Bungalow - i96 - Living room

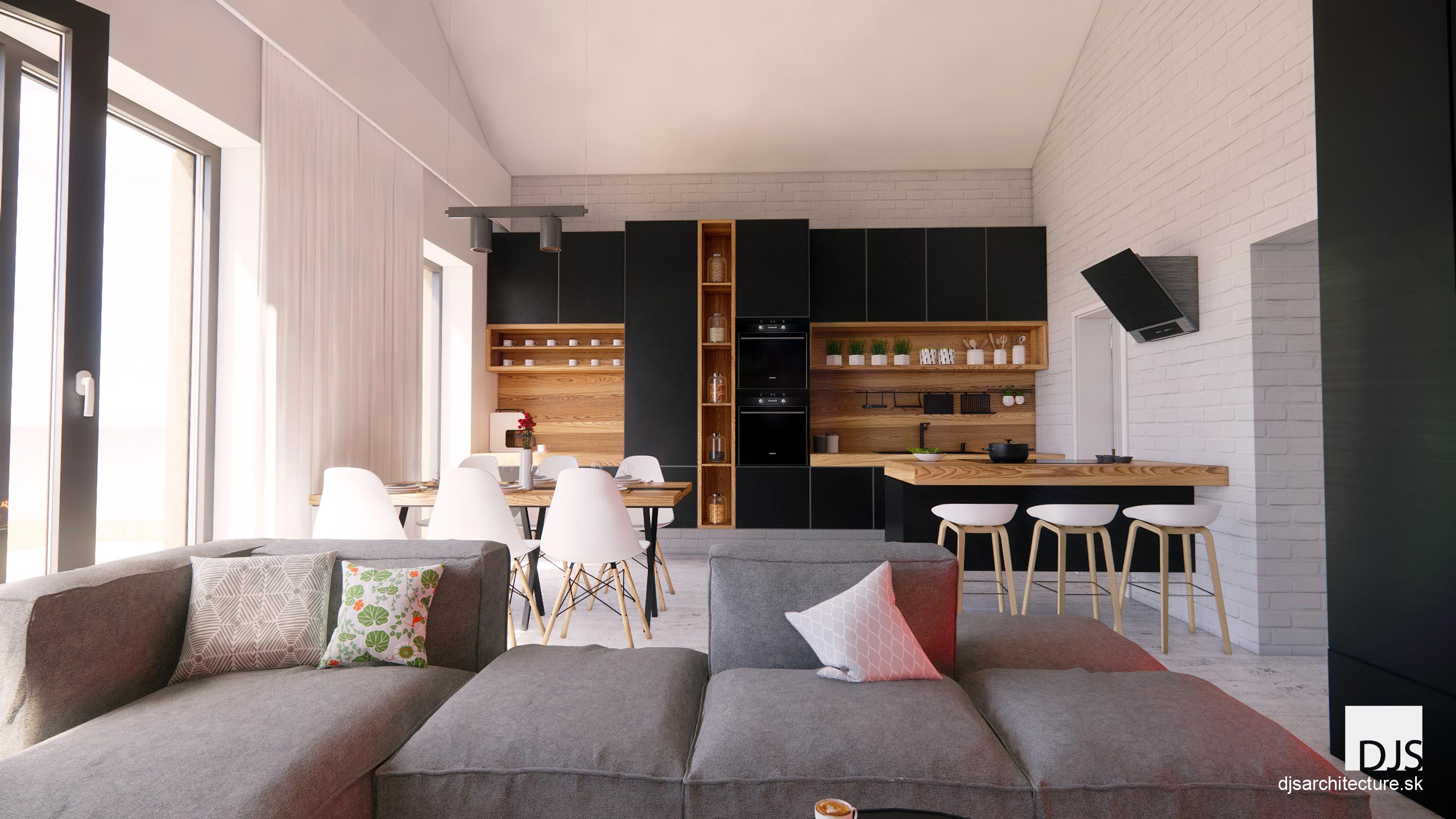

Bungalow - i96 - Living room towards kitchen
Bungalow - i96 - Living room
Bungalow - i96 - Living room
Bungalow - i96 - Bedroom on the corner facing street
Bungalow - i96 - Bathroom
Bungalow - i96 - Bathroom
Bungalow - i96 - Master bedroom

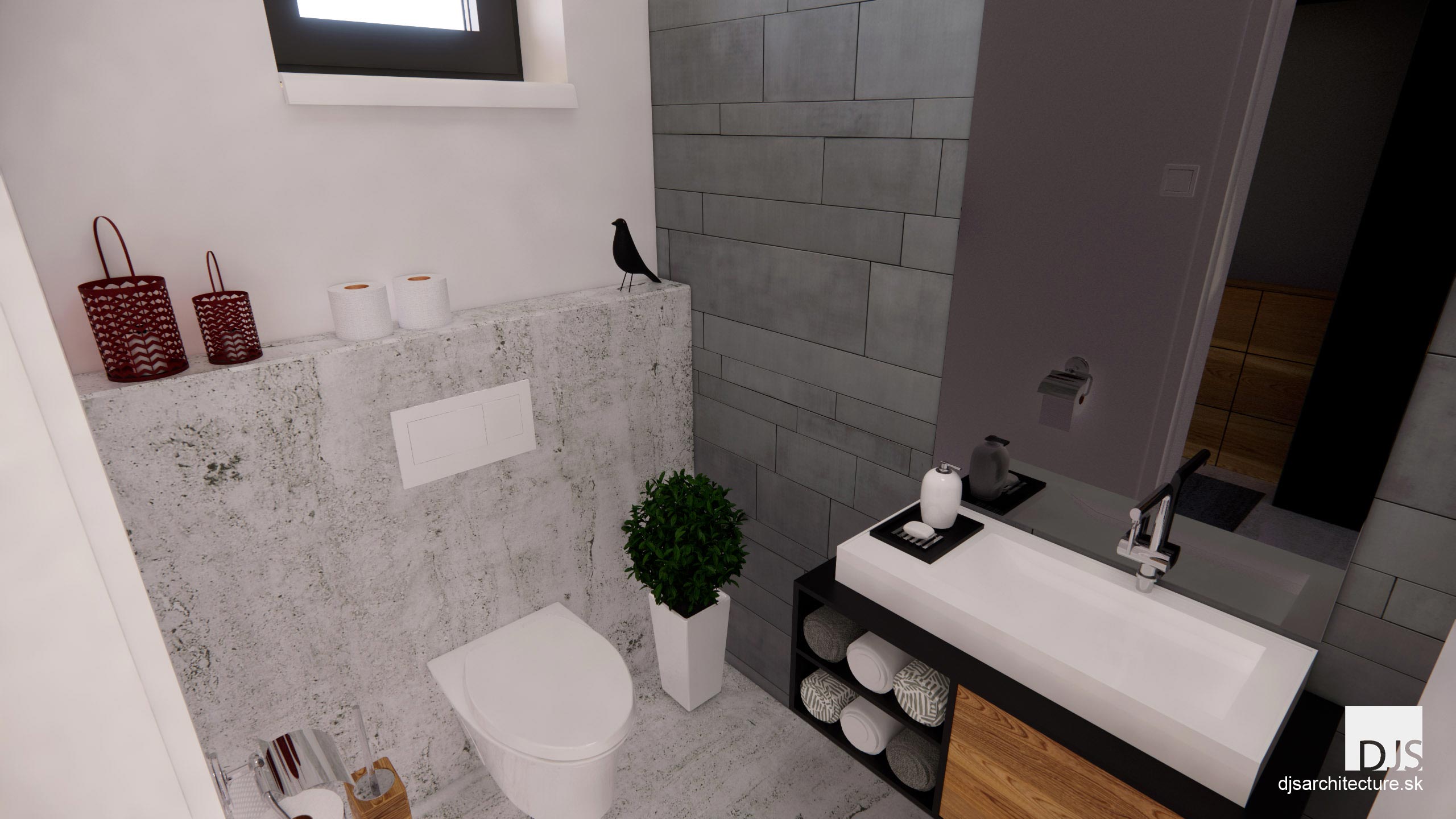

Bungalow - i96 - Restroom near the entrance
Bungalow - i96 - Restroom near the entrance
Bungalow - i96 - Entrance hall
Bungalow - i96 - Corridor
Layout
The entrance to the house is designed from the side and is protected from the weather by a small roof. In the entrance hall, there is a storage space and a toilet in which there is a boiler and a washing machine. Behind the entrance room is a corridor that divides the house into day and night zone. The kitchen itself provides a decent 5.5 meters long kitchen unit, within which is plenty of storage space. In addition, a pantry is accessible from the kitchen, where there is a lot of storage space in the form of shelves. The living room is connected to the dining room and kitchen, the space is enhanced by a fireplace and illuminated by a large glass wall from the terrace. Between the living room and the kitchen there is a dining area with space for a table, around which there is enough room even in the event of a small family gathering. The entire living area has a raised ceiling with beams. To the right of the entrance, towards the street, there is a night zone of the house with three bedrooms and a private bathroom. The Master bedroom has space for a built-in wardrobe as well as a desk or dressing table. The other two bedrooms - children's rooms are accessible from the hallway opposite the Master bedroom. Both rooms have space for a built-in wardrobes. For a higher degree of privacy, it is possible to separate the night zone of the house from the living room by an individual door, which would prevent transmission of noise from the living room to children's rooms. The bathroom has a shower and bathtub and is also designed for two sinks along with a toilet and storage space in the form of a tall cabinet. The house has plenty of storage space - in the entrance room there is a built-in wardrobe with a length of 2.7 m and in each room there is space for a built-in wardrobe.

Technical information

Walls are designed from aerated concrete blocks, which can be easily switched for bricks during construction, if desired. The roof is a classic truss roof with raised ceiling in the living room. There is floor heating designed in the whole house.

Architectural features
The house is designed as a combination of beige and white plaster. The roofing is ceramic of dark grey color, the windows are platic of anthracite color.

Floor plan

If you would like to modify the floor plan, please contact us. Approximate prices of house modifications can be found in our price list of additional services.Mirrored version of house plan is included in price (optional).
Bungalow i96 - Floor plan
Bungalow i96 - Floor plan - Mirrored
Mirrored floor plan is displayed
Original floor plan is displayed

Parameters

Floor area
96.24 m2
Built-up area
124.44 m2
Roof height
5 880 mm
Roof slope
35°
Number of bedrooms
3
Exterior dimensions
7.67 m x 16.6 m
Material costs
58 000 €
Turnkey construction costs
100 000 €
Architectural study in pdf
80 €  (only digital files)
Architectural study in dwg
250 €  (only digital files)
Construction drawings
1 200 €
Non-binding pre-order

Download more information

For each project you bought from us, we offer site plan drawing as well as the projects of all necessary connections for a discounted price. For further information, please refer to our price list of additional services
More information about this house
House plan i96 - More information
Download floor plan of this house
House i96 - Floor plan in pdf

Elevations

Bungalow i96 - Right elevation
Bungalow i96 - Front elevation
Bungalow i96 - Left elevation
Bungalow i96 - Back elevation
