Plans of Bungalow i95

Family house i95

intro     floor plan    info
Elegant 3 bedroom bungalow suitable for narrow sites
The covered veranda along the house creates a unique space for a pleasant seating during summer evenings.
Bungalow i95 - View from street

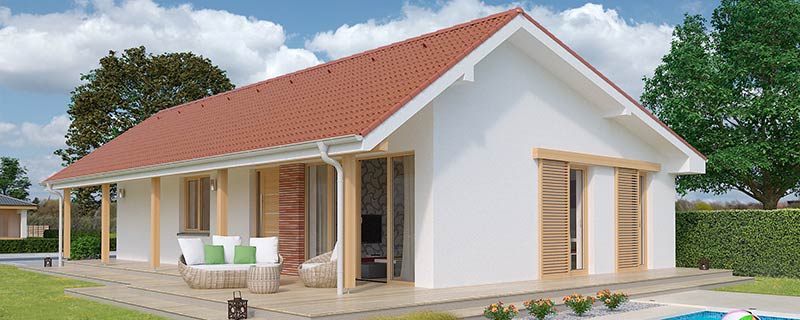

Bungalow i95 - View from garden

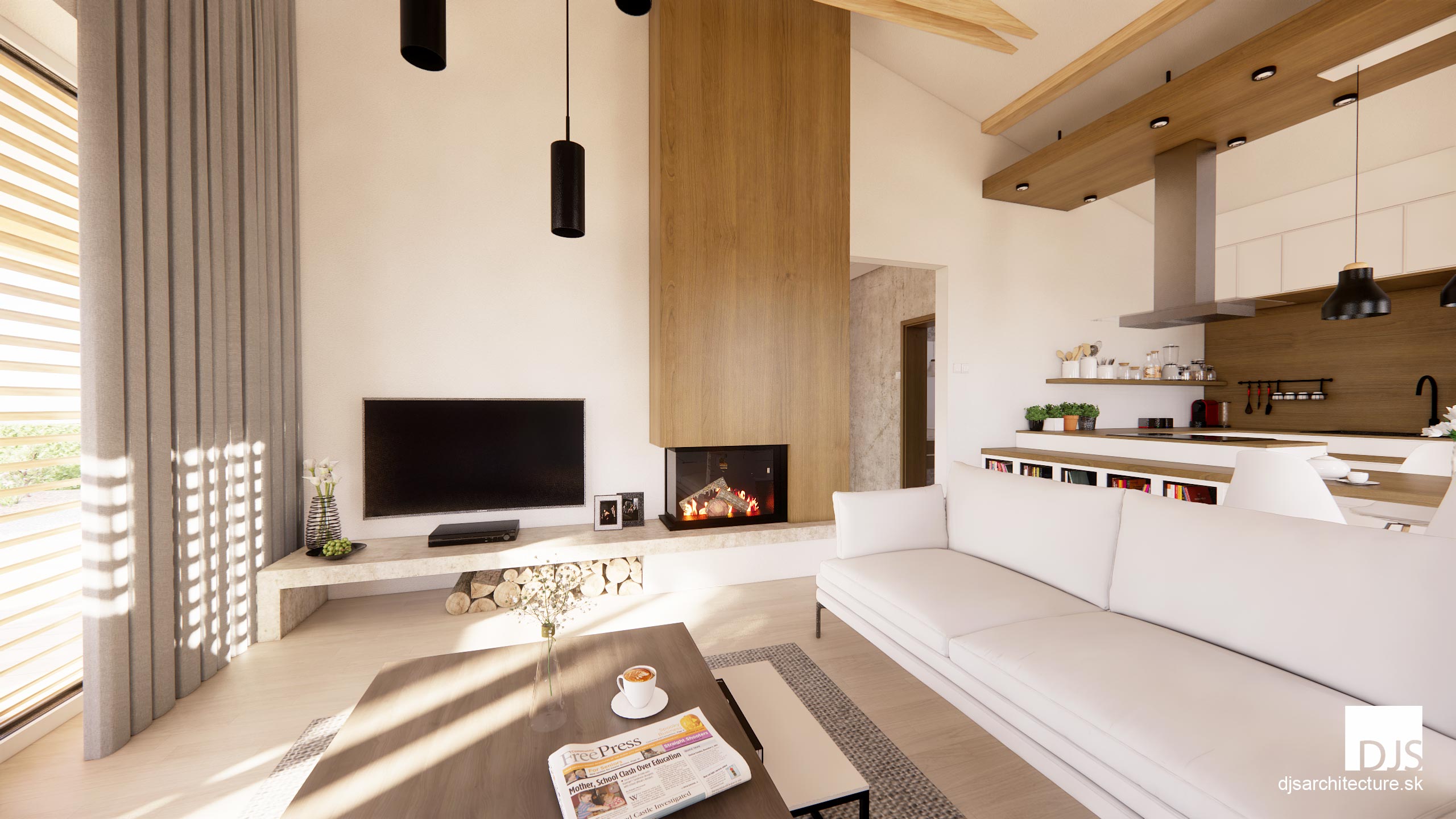

Bungalow i95 - Interior

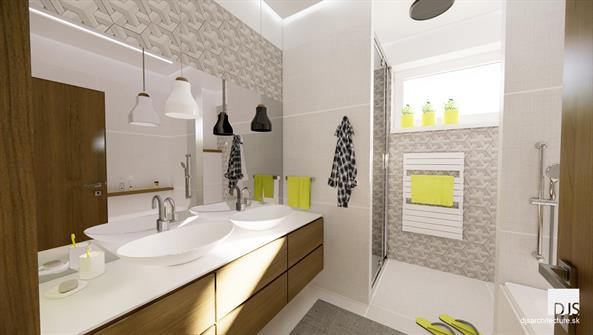

Bungalow i95 - Interior
Layout
Modern, single-storey, energy-efficient house of longitudinal footprint. Entry is situated on the side of the house and is accessible through covered veranda, which is also a characteristic feature of this house. Entry hall is located between private and common areas. Private area consists of three bedrooms with bathroom. Common area of the house consists of an entrance area with covered porch, utility room with toilet, living room combined with kitchen and dining room. Patio is accessible from the living room is partially sheltered by cantilevered roof.  This house is suitable for a corner lot as well as the one of northern orientation.

Technical information

Walls are designed from aerated concrete blocks, which can be easily switched for bricks during construction, if desired. The roof is a classic truss roof. There is floor heating designed in the whole house.

Architectural features
The house is designed as a combination of white plaster in combination with red ceramic cladding. The roofing is concrete of red color, the windows are wooden of natural color.

Floor plan

If you would like to modify the floor plan, please contact us. Approximate prices of house modifications can be found in our price list of additional services.Mirrored version of house plan is included in price (optional).
Bungalow i95 - Floor plan
Bungalow i95 - Floor plan - Mirrored
Mirrored floor plan is displayed
Original floor plan is displayed

Parameters

Floor area
97.04 m2
Built-up area
116.53 m2
Roof height
5 000 mm
Roof slope
16° a 35°
Number of bedrooms
3
Exterior dimensions
8.38 m x 13.75 m
Material costs
52 000 €
Turnkey construction costs
95 000 €
Architectural study in pdf
80 €  (only digital files)
Architectural study in dwg
250 €  (only digital files)
Construction drawings
1 100 €
Non-binding pre-order

Download more information

For each project you bought from us, we offer site plan drawing as well as the projects of all necessary connections for a discounted price. For further information, please refer to our price list of additional services
More information about this house
House plan i95 - More information
Download floor plan of this house
House i95 - Floor plan in pdf

Elevations

Bungalow i95 - Right elevation
Bungalow i95 - Front elevation
Bungalow i95 - Left elevation

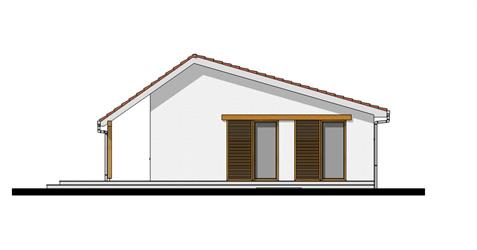

Bungalow i95 - Back elevation
