Plans of Bungalow i92

Family house i92

intro     floor plan    info
Modern, energy-saving bungalow with a rectangular floor plan.
The house is suitable for narrow plots starting from 14.3 m (clear distance of 2.0 m and 3.5 m).
Bungalow i92 - View from street
Bungalow i92 - View from garden

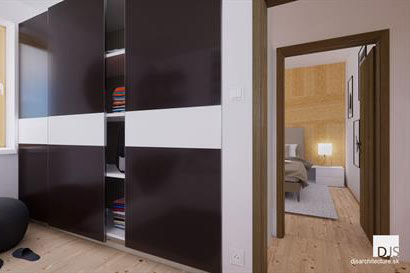

Bungalow i92 - Corner room
Bungalow i92 - Corner room

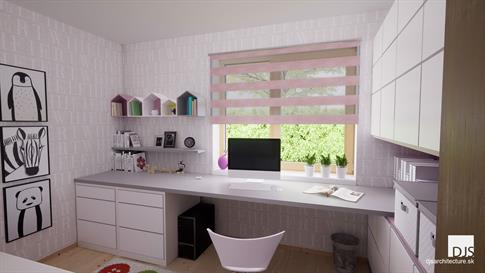

Bungalow i92 - Middle room
Bungalow i92 - Middle room
Bungalow i92 - Middle room

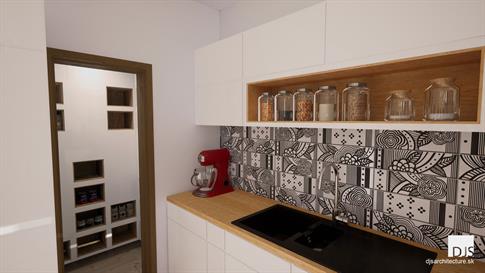

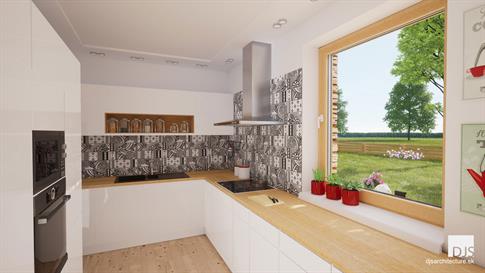

Bungalow i92 - Kitchen
Bungalow i92 - Kitchen
Bungalow i92 - Kitchen
Bungalow i92 - Kitchen

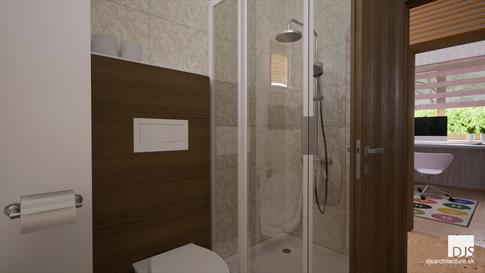

Bungalow i92 - Bathroom
Bungalow i92 - Bathroom
Bungalow i92 - Bathroom

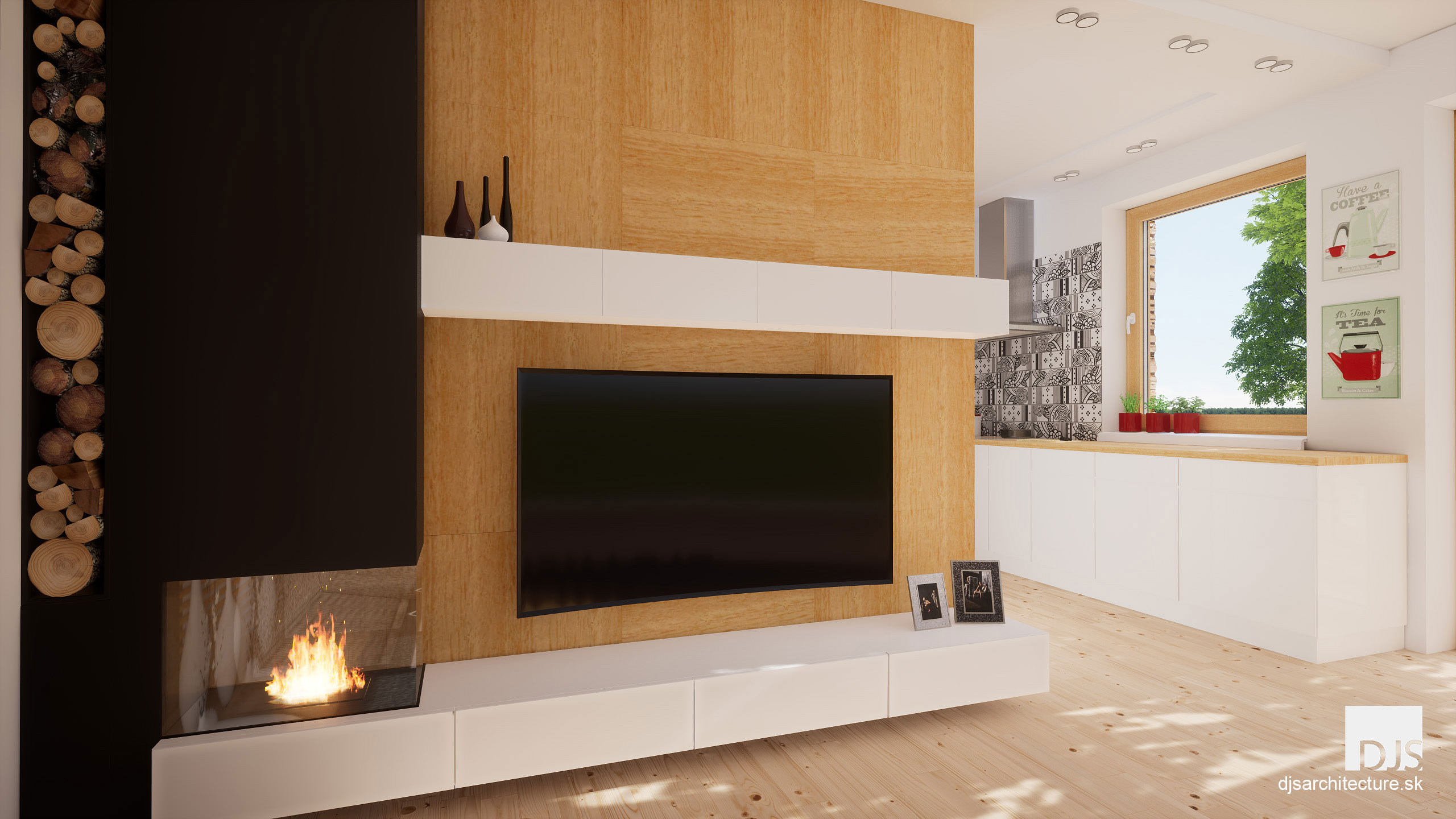

Bungalow i92 - Living room
Bungalow i92 - Living room
Bungalow i92 - Living room
Bungalow i92 - Living room
Bungalow i92 - Living room
Bungalow i92 - Entry hall
Bungalow i92 - Entry hall
Bungalow i92 - Entry hall

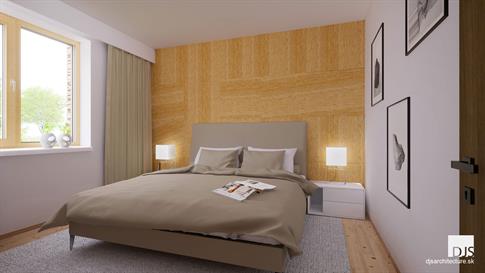

Bungalow i92 - Master bedroom
Bungalow i92 - Master bedroom
Bungalow i92 - Toilet and boiler room
Bungalow i92 - Toilet and boiler room
Bungalow i92 - Terrace
Bungalow i92 - Terrace
Layout
The entrance is situated on the side of the house. The entry hall divides the house into the day and night zone. From the entry room, there is an access to the toilet, which also includes a space for washing machine and a boiler. The night zone of the house consists of three bedrooms with a bathroom. In each of the rooms we designed a practical space for the built-in wardrobe. The bathroom has plenty of space for a shower and a bathtub. The day zone of the house consists of a living room connected with a kitchen and a dining room. In the living room, there is a fireplace which is located in a place that is also visible from the dining table. The large kitchen storage area complements the storage area of pantry where you can easily put away everything you need. In the roof area, there is a storage space for seasonal things, accessible via the folding steps from the entry hall. This house is very suitable for simple self construction.

Technical information

Walls are designed from aerated concrete blocks, which can be easily switched for bricks during construction, if desired. The roof is a truss roof and we designed a storage space for seasonal items there. There is floor heating designed in the whole house.

Architectural features
The house is designed as a combination of white plaster in combination with beige stone cladding. The roofing is concrete of gray color, the windows are wooden of natural color.

Floor plan

If you would like to modify the floor plan, please contact us. Approximate prices of house modifications can be found in our price list of additional services.Mirrored version of house plan is included in price (optional).
Bungalow i92 - Floor plan
Bungalow i92 - Floor plan - Mirrored
Mirrored floor plan is displayed
Original floor plan is displayed

Parameters

Floor area
92.26 m2
Built-up area
118.55 m2
Roof height
4 895 mm
Roof slope
22°
Number of bedrooms
3
Exterior dimensions
8.8 m x 13.85 m
Material costs
41 400 €
Turnkey construction costs
92 000 €
Architectural study in pdf
80 €  (only digital files)
Architectural study in dwg
250 €  (only digital files)
Construction drawings
1 100 €
Non-binding pre-order

3D Tour

Experience the interior of this house through video. For better experience make sure to set the video resolution to at least 1080p.

Download more information

For each project you bought from us, we offer site plan drawing as well as the projects of all necessary connections for a discounted price. For further information, please refer to our price list of additional services
More information about this house
House plan i92 - More information
Download floor plan of this house
House i92 - Floor plan in pdf

Elevations

Bungalow i92 - Right elevation
Bungalow i92 - Front elevation
Bungalow i92 - Left elevation
Bungalow i92 - Back elevation
