Modern 4 bedroom bungalow suitable for narrows sites
Energy-efficient bungalow suitable for narrow sites from the width of 12.8 m (clearance of 1 meter and 3.5 meters).
Layout
The entrance to the house is designed from the side. This solution saves space on the street façade, which is especially necessary for the lighting of rooms, especially on narrow plots. In the entrance hall of the house there is a storage space and a toilet in which there is a boiler and a washing machine. Behind the vestibule is a spacious living area. The kitchen itself provides more than 5.5 running meters of the kitchen unit, within which we designed storage space. In addition, a pantry is accessible from the kitchen, where there is a lot of storage space in the form of shelves. The living room is connected to the dining room and kitchen, the space is made more pleasant by the fireplace as well as the lighting through the glass wall leading to the terrace. On the edge of the living room there is a dining area with space for a larger table, around which there is enough space even in the event of a large family gathering. Next to the living romm, we designed a smaller room accessible directly from the hall, which can serve as a study or guest room. In the provate area of the house, there is a master bedroom as well as two children's rooms with a shared bathroom. The bathroom has a shower and bathtub and is also designed for two sinks along with a toilet and storage space in the form of a tall cabinet. The house has plenty of storage space - in the vestibule there is a built-in closet with a length of 2.8 m and in each room there is space for a built-in closet. This house is particularly suitable for very narrow plots due to its shape and orientation of the windows.


Technical information

Walls are designed from aerated concrete blocks, which can be easily switched for bricks during construction, if desired. The roof is a truss roof and we designed a storage space for seasonal items there. There is floor heating designed in the whole house.

Architectural features
The house is designed as a combination of white plaster in combination with natural stone cladding. The roofing is concrete of dark red color, the windows are wooden of natural color.

Floor plan

If you would like to modify the floor plan, please contact us. Approximate prices of house modifications can be found in our price list of additional services.Mirrored version of house plan is included in price (optional).
Bungalow i119 - Floor plan
Bungalow i119 - Floor plan - Mirrored
Mirrored floor plan is displayed
Original floor plan is displayed

Parameters

Floor area
119.05 m2
Built-up area (including covered terrace)
149.68 m2 (167.43 m2)
Roof height
5 650 mm
Roof slope
30°
Number of bedrooms
4
Exterior dimensions
8.29 m x 18.05m (20.23 including covered terrace)
Material costs
72 000 €
Turnkey construction costs
125 000 €
Architectural study in pdf
80 €  (only digital files)
Architectural study in dwg
250 €  (only digital files)
Construction drawings
1 200 €
Non-binding pre-order

Download more information

For each project you bought from us, we offer site plan drawing as well as the projects of all necessary connections for a discounted price. For further information, please refer to our price list of additional services
More information about this house
House plan i119 - More information
Download floor plan of this house
House i119 - Floor plan in pdf

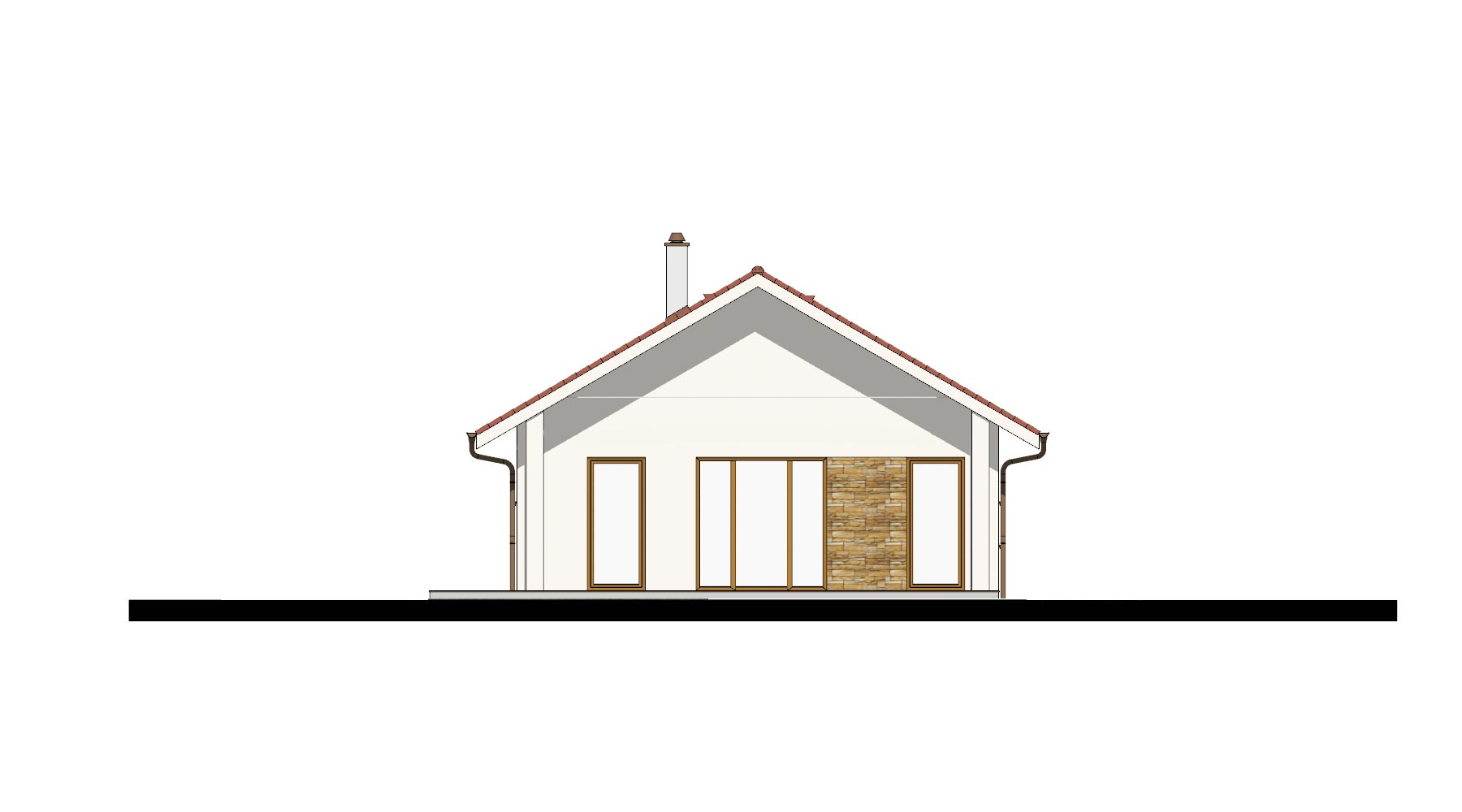

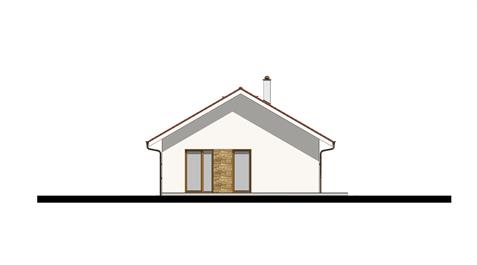

Elevations
