Plans of Bungalow i120

Family house i120

intro     floor plan    info
Unconventional 3 bedroom bungalow suitable for narrows sites
Three bedroom energy-efficient bungalow suitable for narrow sites from the width of 14.50 m (clearance of 2 meters and 3.5 meters).
Bungalow - i120 - View from the street
Bungalow - i120 - View from garden
Bungalow - i120 - Terrace
Bungalow - i120 - Terrace
Bungalow - i120 - Terrace
Bungalow - i120 - Exterior view - Entrance
Bungalow - i120 - Kitchen
Bungalow - i120 - Living room
Bungalow - i120 - Living room
Bungalow - i120 - Dining area

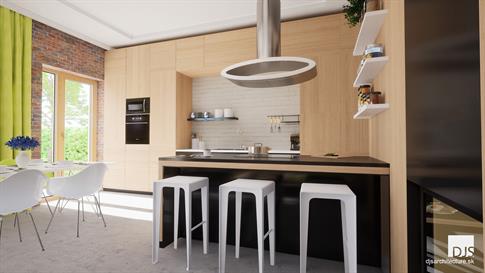

Bungalow - i120 - Kitchen with bar counter
Bungalow - i120 - Kitchen from the terrace
Bungalow - i120 - View of living room from kitchen
Bungalow - i120 - Pantry
Bungalow - i120 - Living room
Bungalow - i120 - Living room
Bungalow - i120 - Living room
Bungalow - i120 - Entry hall towards the toilet
Bungalow - i120 - Entry hall towards the exterior
Bungalow - i120 - Toilet near the entrance
Bungalow - i120 - Toilet with boiler
Bungalow - i120 - Bathroom
Bungalow - i120 - Bathroom
Bungalow - i120 - Bathroom
Bungalow - i120 - Master bedroom
Bungalow - i120 - Master bedroom
Bungalow - i120 - Corner room
Bungalow - i120 - Corner room
Bungalow - i120 - Corner room
Bungalow - i120 - Bedroom next to entrance
Bungalow - i120 - Bedroom next to entrance
Bungalow - i120 - Corridor towards the bedrooms
Layout
The entrance is protected from the weather by an extended roof. Behind the netrance, there is large storage space in the entry room. From there you can access day and night part of the house which can be easily separated by additional doors. There are three bedrooms and one big bathroom in the night part. All bedrooms have a minimum size of 12 square meters. Day part contains the combined living-dining area and kitchen open to a large sheltered terrace. Therefore meals can be easily moved outside.


Technical information

Walls are designed from aerated concrete blocks, which can be easily switched for bricks during construction, if desired. The roof is a truss roof and we designed a storage space for seasonal items there. There is floor heating designed in the whole house.

Architectural features
The house is designed as a combination of white plaster in combination with light wood. The roofing is concrete of grey color, the windows are wooden of natural color.

Interior

The interior is designed in an industrial style. The materials used are white and dark-gray laminate, light wood, brick and concrete floors. The color is added to the spaces by elements such as curtains, flowers, seats and other small items. The corridor space as well as the individual rooms are designed with light colored walls to make them more airy and more spacious. Also the interior doors are made of white laminate. The bathroom features green wall on one side of the shower.

Floor plan

If you would like to modify the floor plan, please contact us. Approximate prices of house modifications can be found in our price list of additional services.Mirrored version of house plan is included in price (optional).
Bungalow i120 - Floor plan
Bungalow i120 - Floor plan - Mirrored
Mirrored floor plan is displayed
Original floor plan is displayed

Parameters

Floor area
122.82 m2
Built-up area
144.00 m2
Roof height
5 390 mm
Roof slope
25°
Number of bedrooms
3
Exterior dimensions
9.0 m x 16.0 m
Material costs
60 000 €
Turnkey construction costs
110 000 €
Architectural study in pdf
80 €  (only digital files)
Architectural study in dwg
250 €  (only digital files)
Construction drawings
1 100 €
Non-binding pre-order

3D Tour

Experience the interior of this house through video. For better experience make sure to set the video resolution to at least 1080p.

Download more information

For each project you bought from us, we offer site plan drawing as well as the projects of all necessary connections for a discounted price. For further information, please refer to our price list of additional services
More information about this house
House plan i120 - More information
Download floor plan of this house
House i120 - Floor plan in pdf

Elevations

Bungalow i120 - Right elevation
Bungalow i120 - Front elevation
Bungalow i120 - Left elevation
Bungalow i120 - Back elevation
