Plans of Bungalow i115

Family house i115

intro     floor plan    info
Modern 3 bedroom bungalow with saddle roof
Energy saving bungalow also suitable for narrower sites from 13.6 m (clearance of 2.0m on both sides).

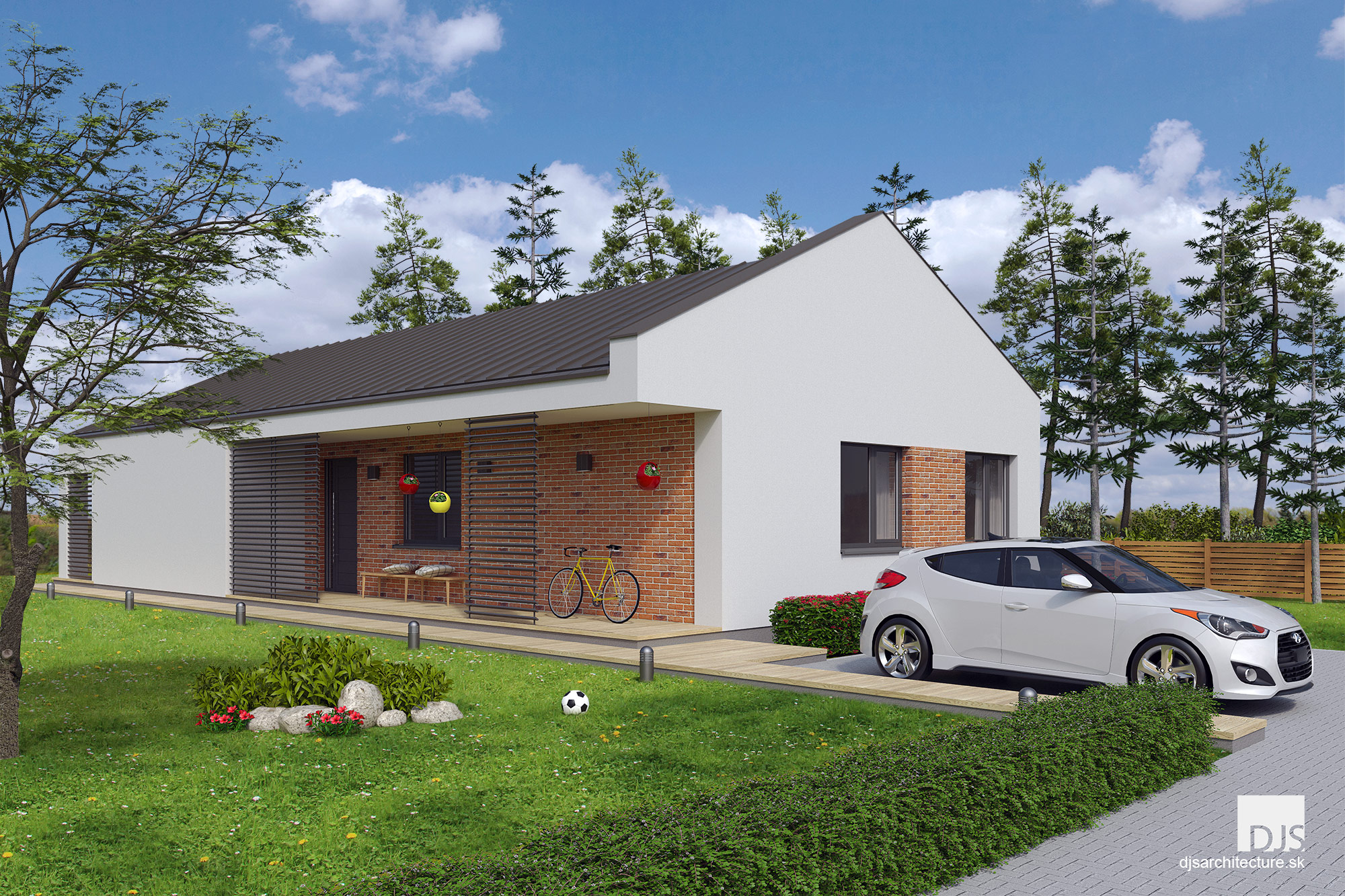

Bungalow i115 - View from street
Bungalow i115 - View from garden
Layout

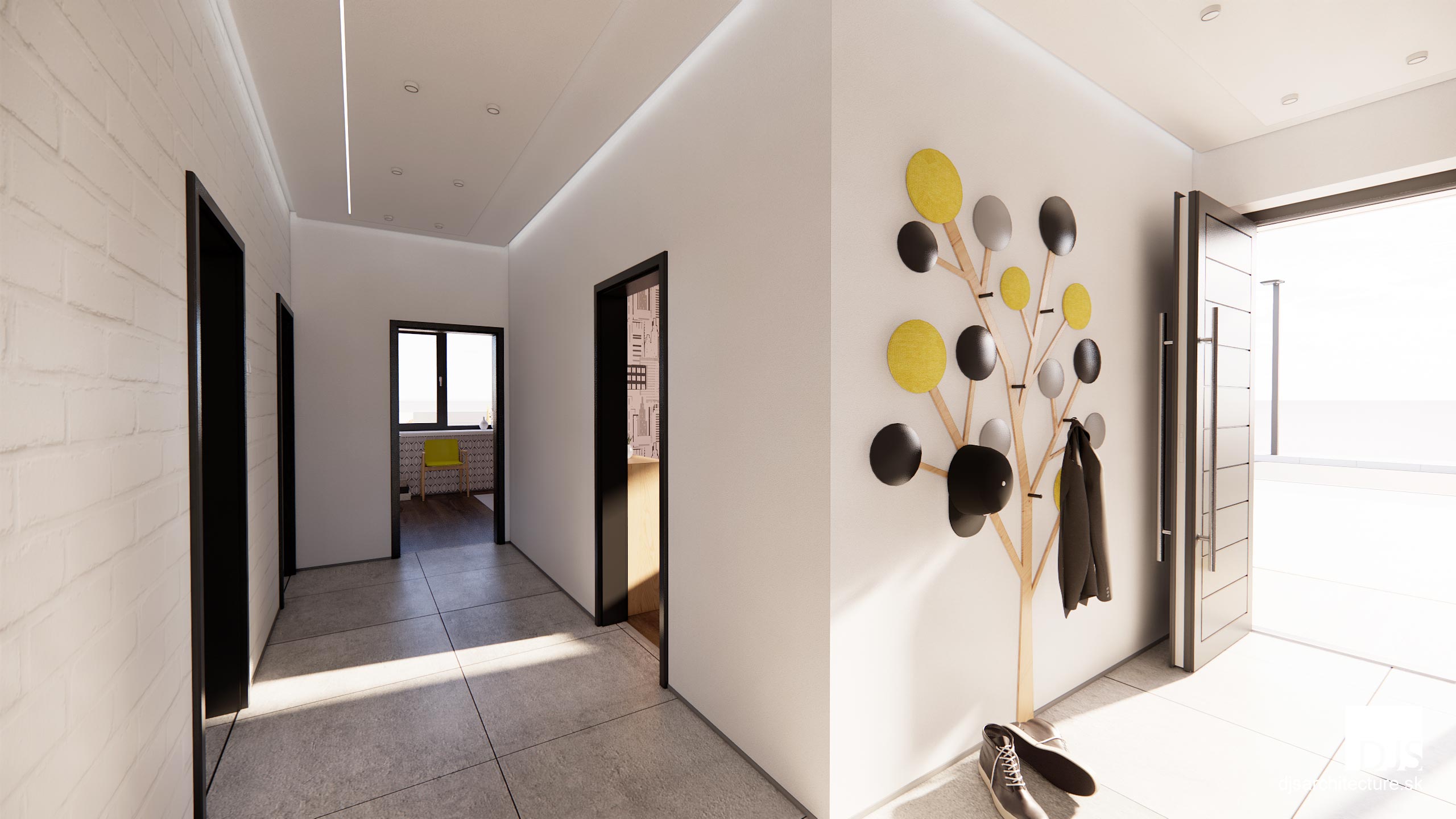

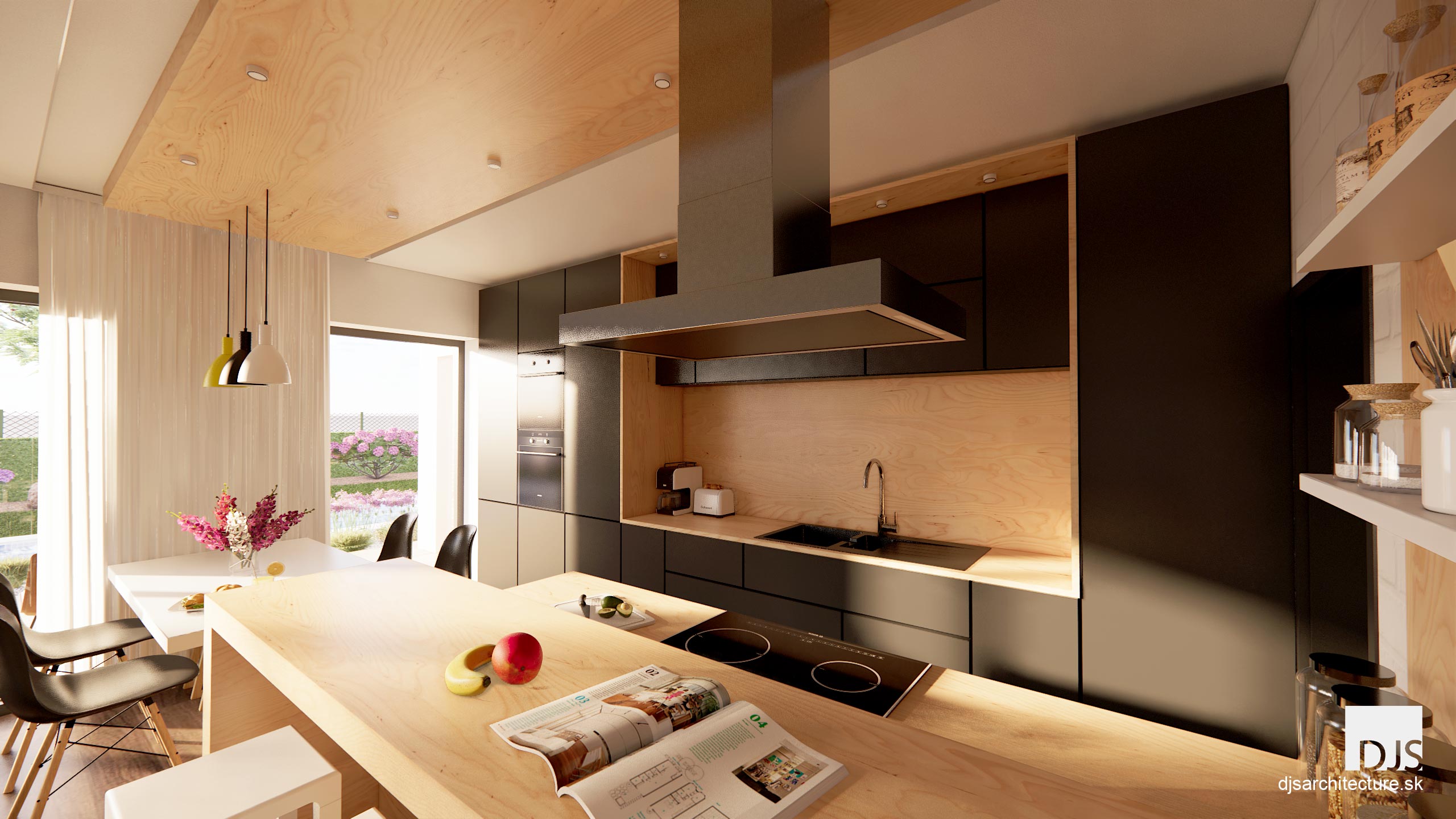

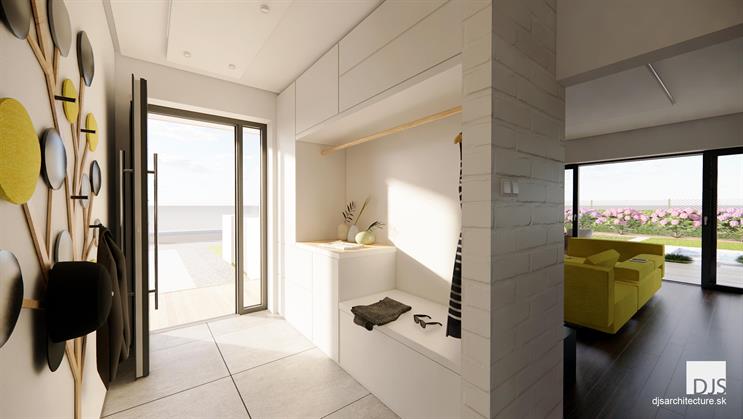

Entrance to the house is located from the side and the overhanging roof shelters it from weather conditions. In the entry hall of the house you can find storage space as well as a toilet in the adjacent room. The private zone of the house (bedrooms and bathroom) can be separated from the rest of the house by adding one additional door to the corridor. Living room is connected with kitchen and dining room. These spaces are oriented to the garden, with which they are connected through the covered terrace.


Technical information

Walls are designed from aerated concrete blocks, which can be easily switched for bricks during construction, if desired. The roof is a truss roof and we designed a storage space for seasonal items there. There is floor heating designed in the whole house.

Architectural features
The house is designed as a combination of white plaster in combination with red brick cladding. The roofing is concrete of grey color, the windows are plastic of anthracite color.

Floor plan

If you would like to modify the floor plan, please contact us. Approximate prices of house modifications can be found in our price list of additional services.Mirrored version of house plan is included in price (optional).
Bungalow i115 - Floor plan
Bungalow i115 - Floor plan - Mirrored
Mirrored floor plan is displayed
Original floor plan is displayed

Parameters

Floor area
114.11 m2
Built-up area
142.90 m2
Roof height
5 560 mm
Roof slope
25°
Number of bedrooms
3
Exterior dimensions
9.6 m x 15.6 m
Material costs
58 000 €
Turnkey construction costs
105 000 €
Architectural study in pdf
80 €  (only digital files)
Architectural study in dwg
250 €  (only digital files)
Construction drawings
1 100 €
Non-binding pre-order

Download more information

For each project you bought from us, we offer site plan drawing as well as the projects of all necessary connections for a discounted price. For further information, please refer to our price list of additional services
More information about this house
House plan i115 - More information
Download floor plan of this house
House i115 - Floor plan in pdf

Elevations

Bungalow i115 - Right elevation
Bungalow i115 - Front elevation
Bungalow i115 - Left elevation
Bungalow i115 - Back elevation
