Plans of Bungalow i106

Family house i106

intro     floor plan    info
3 bedroom bungalow suitable for very narrow sites
Energy-saving bungalow suitable for zones with very narrow plots - from 12.5m (clearance from one side 2.0m and 3.5m)
Bungalow - i106 - View from the street
Bungalow - i106 - View from garden
Bungalow - i106 - Entry hall
Bungalow - i106 - Corridor between living room and master bedroom
Bungalow - i106 - Kitchen
Bungalow - i106 - Kitchen
Bungalow - i106 - Kitchen

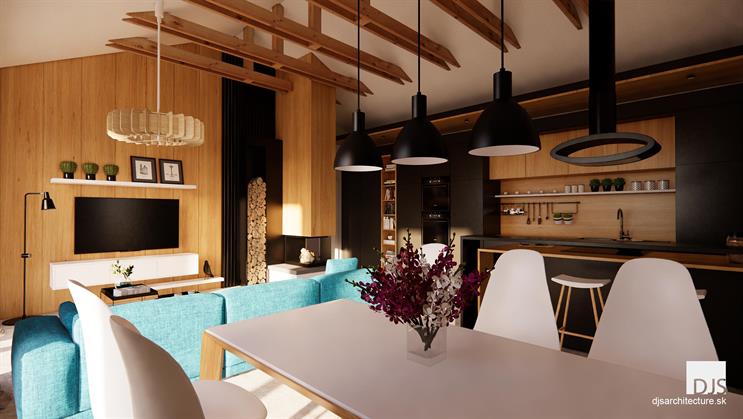

Bungalow - i106 - Living room
Bungalow - i106 - Living room
Bungalow - i106 - Living room
Bungalow - i106 - Living room
Bungalow - i106 - Master bedroom
Bungalow - i106 - Master bedroom
Bungalow - i106 - Restroom next to entrance

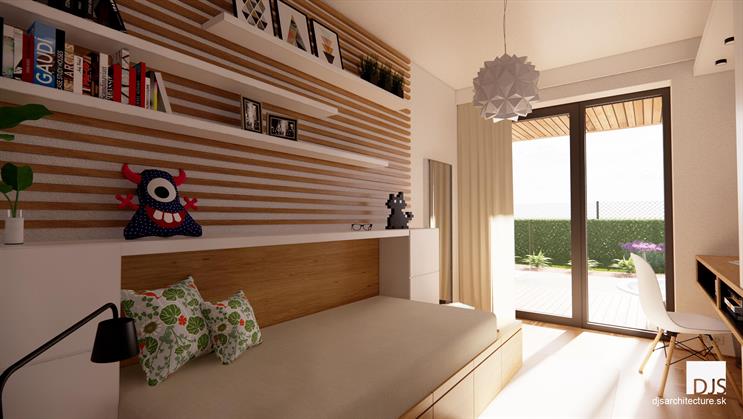

Bungalow - i106 - Bedroom next to living room
Bungalow - i106 - Bedroom next to living room
Bungalow - i106 - Bedroom in the middle
Bungalow - i106 - Bedroom in the middle
Bungalow - i106 - Bathroom with bathtub and shower
Bungalow - i106 - Bathroom with bathtub and shower
Layout
The entrance to the house is protected from the weather by a small roof. In the entry hall of the house there is a storage space. Next to entry room, there is a toilet in which there is a boiler and a washing machine. Behind the entry room a spacious living area can be found. The kitchen itself provides more than 6 meters long kitchen unit, within which the storage space is located. In addition, a pantry is accessible from the kitchen, where there is a lot of storage space in the form of shelves. The living room is connected to the dining room and kitchen, the space is enhanced by a fireplace as well as lighting by a large glazed wall from the terrace. Between the living room and the kitchen there is a dining area with space for a table, around which there is enough space even in the event of a large family gathering. The entire living area has a raised ceiling with beams. From the living room and dining area, you go to the night zone of the house, which is separated by a load-bearing wall for a higher degree of privacy. In the night zone there is a master bedroom as well as two children's rooms with a shared bathroom. All rooms face the garden, which is connected by a covered terrace. The bathroom has a shower and bathtub and is also designed for two sinks along with a toilet and storage space in the form of a tall cabinet. The house also means plenty of storage space - in the entry hall there is a built-in closet with a length of 1.75 m and in each room there is space for a built-in closet. However, this house offers the largest amount of storage space along the corridor - a total of 7m. The covered terrace is not part of the project

Technical information

Walls are designed from aerated concrete blocks, which can be easily switched for bricks during construction, if desired. The roof is a classic truss roof with raised ceiling in the living room. There is floor heating designed in the whole house.

Architectural features
The house is designed as a combination of beige stone cladding and white plaster. The roofing is metalic of light grey color, the windows are platic of anthracite color.

Floor plan

If you would like to modify the floor plan, please contact us. Approximate prices of house modifications can be found in our price list of additional services.Mirrored version of house plan is included in price (optional).
Bungalow i106 - Floor plan
Bungalow i106 - Floor plan - Mirrored
Mirrored floor plan is displayed
Original floor plan is displayed

Parameters

Floor area
105.84 m2
Built-up area
134.64 m2
Roof height
4900 mm
Roof slope
25°
Number of bedrooms
3
Exterior dimensions
7.05 m x 19.05 m
Material costs
66 000 €
Turnkey construction costs
110 000 €
Architectural study in pdf
80 €  (only digital files)
Architectural study in dwg
250 €  (only digital files)
Construction drawings
1 200 €
Non-binding pre-order

Download more information

For each project you bought from us, we offer site plan drawing as well as the projects of all necessary connections for a discounted price. For further information, please refer to our price list of additional services
More information about this house
House plan i106 - More information
Download floor plan of this house
House i106 - Floor plan in pdf

Elevations

Bungalow i106 - Right elevation
Bungalow i106 - Front elevation
Bungalow i106 - Left elevation
Bungalow i106 - Back elevation
