Plans of Bungalow O135

Family house O135

intro     floor plan    info
Modern 3 bedroom bungalow with a garage or 4 bedrooms
Elegant and yet simple bungalow, which is unbeatable for construction costs due to its optimized building constructions. We offer the project in two variants - with a garage and 3 bedrooms or with 4 bedrooms.
House plan - O135 - Street view
House plan - O135 - View from garden
House plan - O135 - Living room towards kitchen
House plan - O135 - Living room from dining area
House plan - O135 - Kitchen
House plan - O135 - Corner bedroom
House plan - O135 - Bedroom
House plan - O135 - Bedroom
House plan - O135 - Master bedroom
House plan - O135 - Master bedroom
House plan - O135 - Bathroom next to living room
House plan - O135 - Bathroom next to master bedroom
Layout
Elegant yet simple bungalow, which is easy to build thanks to its well optimized design. This house meets the current strict low-energy standards and is even designed to meet the requirements of the most demanding customers. Floor plan is strictly divided into day/public and night/private zones in such a way that these do not interfere with each other. The living room is connected with kitchen and dining room and these are further connected by a sliding door with a partly covered terrace overlooking the garden. You can choose from two variants of this plan - 3 bedrooms + garage or 4 bedrooms. The front bedroom can serve also as na office with a separate entrance from street.


Technical information
The walls are designed from aerated concrete blocks, which can be easily switched for bricks during construction, if desired. The roof is a truss roof and we designed a storage space for seasonal items there. There is floor heating designed in the whole house.

Architectural features
The house is designed as a combination of white plaster and a ceramic cladding of red color. The roofing is concrete of grey color, the windows are plasticof anthracite color.

Interior

The living room is equipped with a fireplace with storage space in the form of shelves and built-in cabinets. In the dining area, there is a folding table, which can serve for 8 persons during family events. We also designed space for a small bar counter with a seating for two people in the kitchen area. The colorful living room is designed in shades of light wood combined with white color, revived by a blue textile sofa with claret elements in the form of pillows, plates and bar stools. Warm colors and natural wood dominate in the garden-oriented bedroom.

Floor plan

If you would like to modify the floor plan, please contact us. Approximate prices of house modifications can be found in our price list of additional services.Mirrored version of house plan is included in price (optional).
Projekt domu O135 - Pôdorys
Projekt domu O135 - Pôdorys - Zrkadlený
This house can be ordered either in a variant with 4 bedrooms and a garage or with 5 bedrooms without a garage.
Projekt domu O135 - Pôdorys vo variante s 5 izbami
Projekt domu O135 - Pôdorys vo variante s 5 izbami - zrkadlený
Mirrored floor plan is displayed
Original floor plan is displayed

Parameters

Floor area
134.14 m2
Built-up area
166.28 m2
Roof height
5 400 mm
Roof slope
16°
Number of bedrooms
3+garage or 4
Exterior dimensions
12.5 m x 13.25 m
Material costs
68 000 €
Turnkey construction costs
120 000 €
Architectural study in pdf
80 €  (only digital files)
Architectural study in dwg
250 €  (only digital files)
Construction drawings price
1 100 €
Non-binding pre-order

Download more information

For each project you bought from us, we offer site plan drawing as well as the projects of all necessary connections for a discounted price. For further information, please refer to our price list of additional services
More information about this house
House plan O135 - More information
Download floor plan of this house
House O135 - Floor plan in pdf

Construction photos

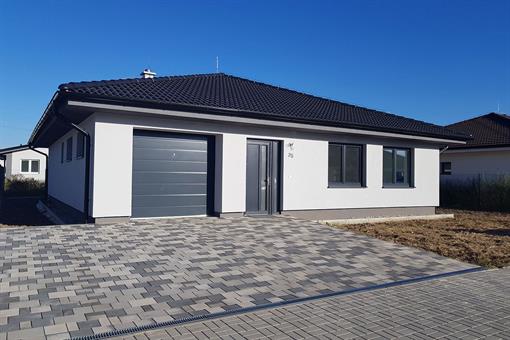

Bungalow O135 - Almost finished building
Bungalow O135 - Almost finished building
Bungalow O135 - Almost finished building

Elevations

Bungalow O135 - Right elevation
Bungalow O135 - Front elevation
Bungalow O135 - Left elevation
Bungalow O135 - Back elevation
