Economical 4 bedroom bungalow on a small footprint
The L-shaped layout provides a higher level of privacy. The front room can also serve as an office or small store accessible directly from the street.
Bungalow L120 - View from street
Bungalow L120 - View from garden
Layout

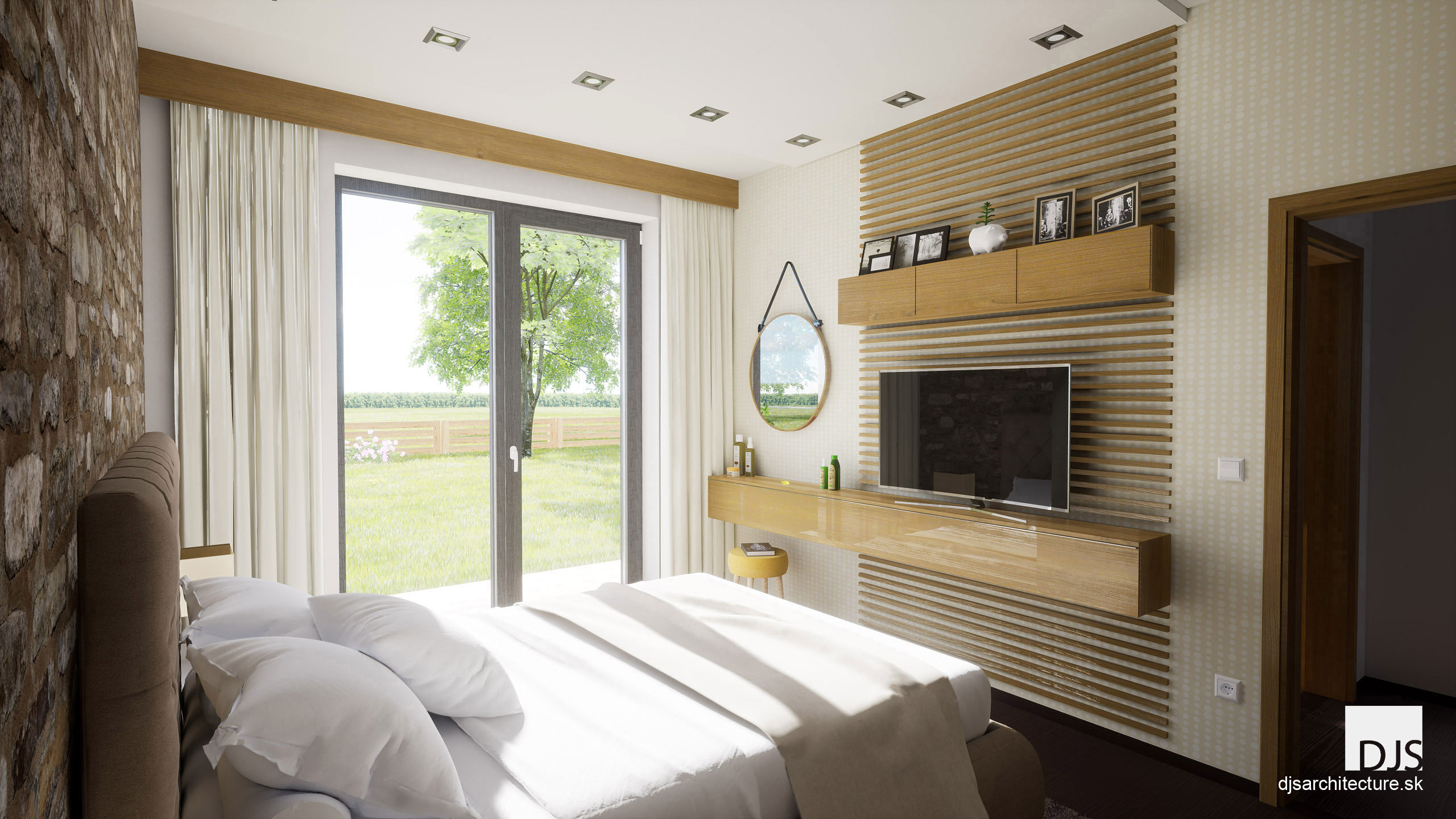

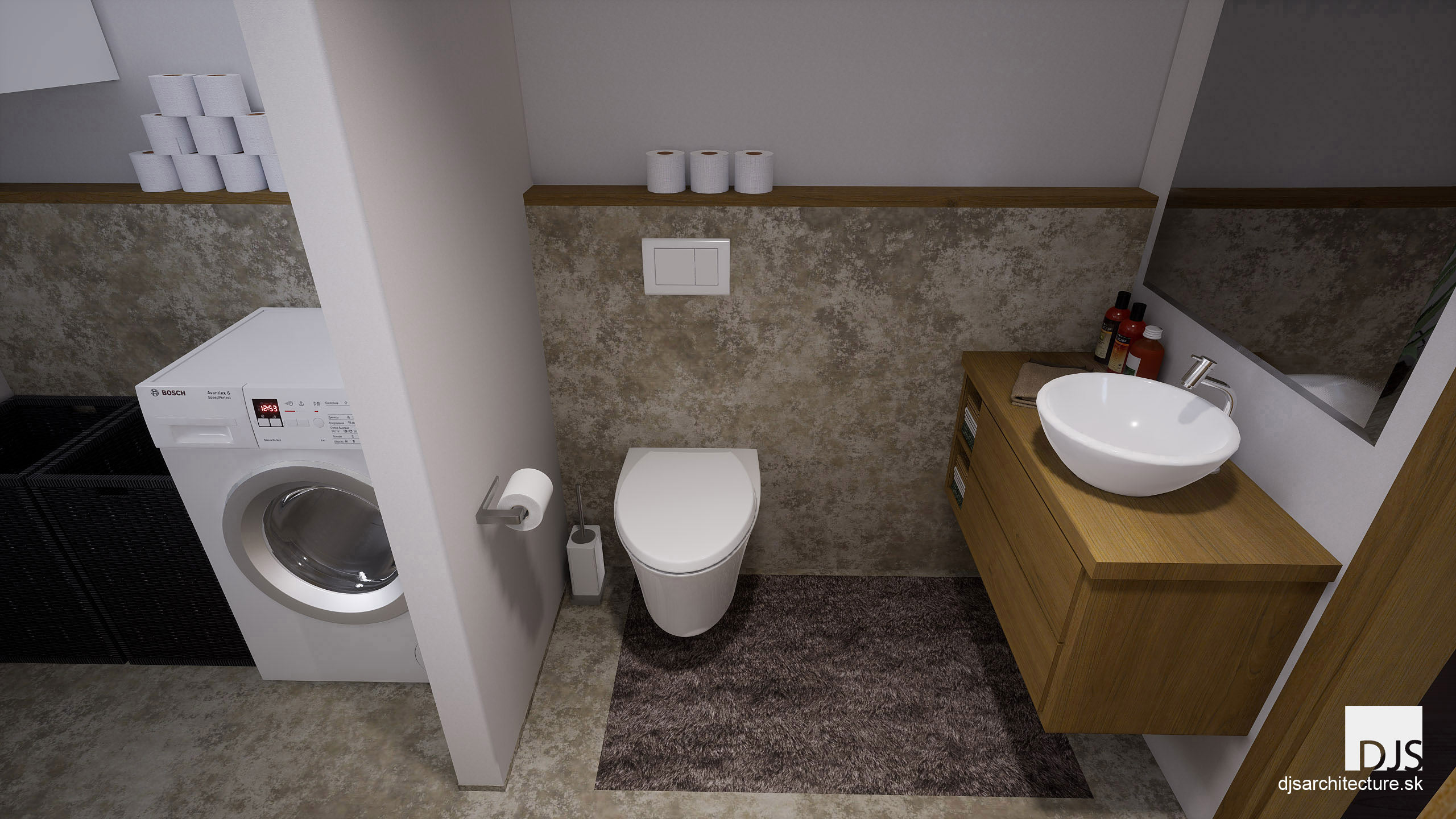

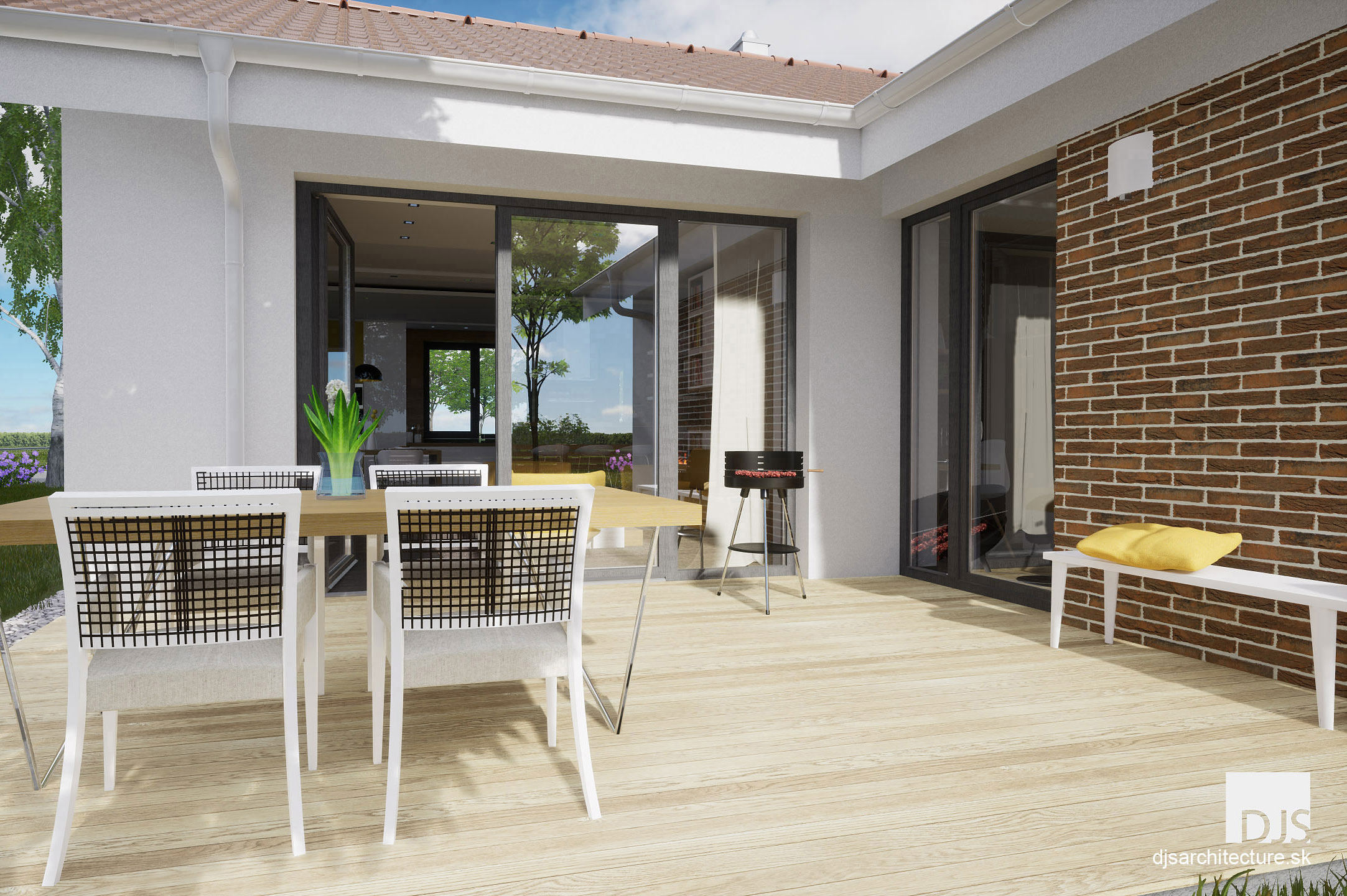

Bungalow L120 is a modern 4-bedroom bungalow with the L-shaped floor plan suitable for sites with minimal width of 18 m. The house is divided into day and night part, to prevent disruptions of privacy, for example during visits. There is a room directly accessible from the entry room that can serve as an office or guest room. The entry from the street is shielded against bad weather by volume of the house as well as overhanging roof. We designed spacious entrance area with plenty of storage space, such as a built-in wardrobes. The day part of the bungalow is centered around living room connected to the kitchen. The kitchen itself can be partially separated from the living room, in case of interest. In the night private zone of this house, there are three bedrooms with a bathroom. We traditionally designed a terrace from the rear side of the house that is protected against the bad weather by the shape of the house.

Technical information
The walls are designed from aerated concrete blocks, which can be easily switched for bricks during construction, if desired. The roof is a truss roof and we designed a storage space for seasonal items there. There is floor heating designed in the whole house.

Architectural features
The house is designed as a combination of white plaster and a brick cladding of brown color. The roofing is concrete of red color, the windows are plastic of anthracite color.

Floor plan

If you would like to modify the floor plan, please contact us. Approximate prices of house modifications can be found in our price list of additional services.Mirrored version of house plan is included in price (optional).
Bungalow L120 - Floor plan
Bungalow L120 - Floor plan - Mirrored
Mirrored floor plan is displayed
Original floor plan is displayed

Parameters

Floor area
120.35  m2
Built-up area
149.56 m2
Roof height
5 515 mm
Roof slope
30°
Number of bedrooms
4
Exterior dimensions
12.7 m x 13.85 m
Material costs
50 400 €
Turnkey construction costs
112 000 €
Architectural study in pdf
80 €  (only digital files)
Architectural study in dwg
250 €  (only digital files)
Construction drawings price
1 100 €
Non-binding pre-order

Download more information

For each project you bought from us, we offer site plan drawing as well as the projects of all necessary connections for a discounted price. For further information, please refer to our price list of additional services
More information about this house
House plan L120 - More information
Download floor plan of this house
House L120 - Floor plan in pdf

Elevations

Bungalow L120 - Right elevation
Bungalow L120 - Front elevation
Bungalow L120 - Left elevation
Bungalow L120 - Back elevation
