Plans of Bungalow L118

Family house L118

intro     floor plan    info
Modern 3 bedroom bungalow with flat roof of total area of 118 sqm
The view from the kitchen to the street and the garden, the patio covered with volume of house for greater privacy, the master bedroom with walk-in wardrobe offer comfortable living for a family of four.
House plan - L118 - View from the street
House plan - L118 - Evening view from the garden
House plan - L118 - View from the garden
Layout
From the entrance room one can access the toilet and the technical room where the boiler and washing machine are located. Behind the entrance room there is a kitchen, which is the center of the house - from there one can see what is going on the street as well as in the garden, therefore it offers a good overview of what is happening in the house. The kitchen itself provides 7 standard meters of kitchen units and additional storage is located in the adjacent pantry. There is a dining area with enough space for the dining table even for larger family parties. The living room is connected to the terrace with a large door and is supplemented by a fireplace for further comfort. From the living room one can access the private zone of the house which is separated from the rest of the house for a higher level of privacy. If required, they can be separated by a door. In the private zone there is a master bedroom with its own walk-in wardrobe and bathroom as well as two children's rooms with a shared main bathroom. The bathroom has a shower and a bathtub, as well as two washbasins along with a toilet and a storage space in the form of a high cabinet. There is also enough storage space in the house - in the entrance room there is a built-in wardrobe with a length of 2.1 m and in each room there is space for a built-in wardrobe.

Technical information
Walls are designed from aerated concrete blocks, which can be easily switched for bricks during construction, if desired. The roof is flat. There is floor heating designed in the whole house.

Architectural features
The house is designed as a combination of white plaster and ceramic cladding with the look of wood. The roof is flat, covered with water-proofing membrane, the windows are plastic of anthracite color.

Floor plan

If you would like to modify the floor plan, please contact us. Approximate prices of house modifications can be found in our price list of additional services.Mirrored version of house plan is included in price (optional).
Bungalow L118 - Floor plan
Bungalow L118 - Floor plan - Mirrored
Mirrored floor plan is displayed
Original floor plan is displayed

Parameters

Floor area
117.96 m2
Built-up area
152.12 m2
Roof height
3 800 mm
Roof slope
Number of bedrooms
3
Exterior dimensions
14.67 m x 14.42 m
Material costs
69 000 €
Turnkey construction costs
115 000 €
Architectural study in pdf
80 €  (only digital files)
Architectural study in dwg
250 €  (only digital files)
Construction drawings price
1 100 €
Non-binding pre-order

Download more information

For each project you bought from us, we offer site plan drawing as well as the projects of all necessary connections for a discounted price. For further information, please refer to our price list of additional services
More information about this house
House plan L118 - More information
Download floor plan of this house
House L118 - Floor plan in pdf

Elevations

Bungalow L118 - Right elevation

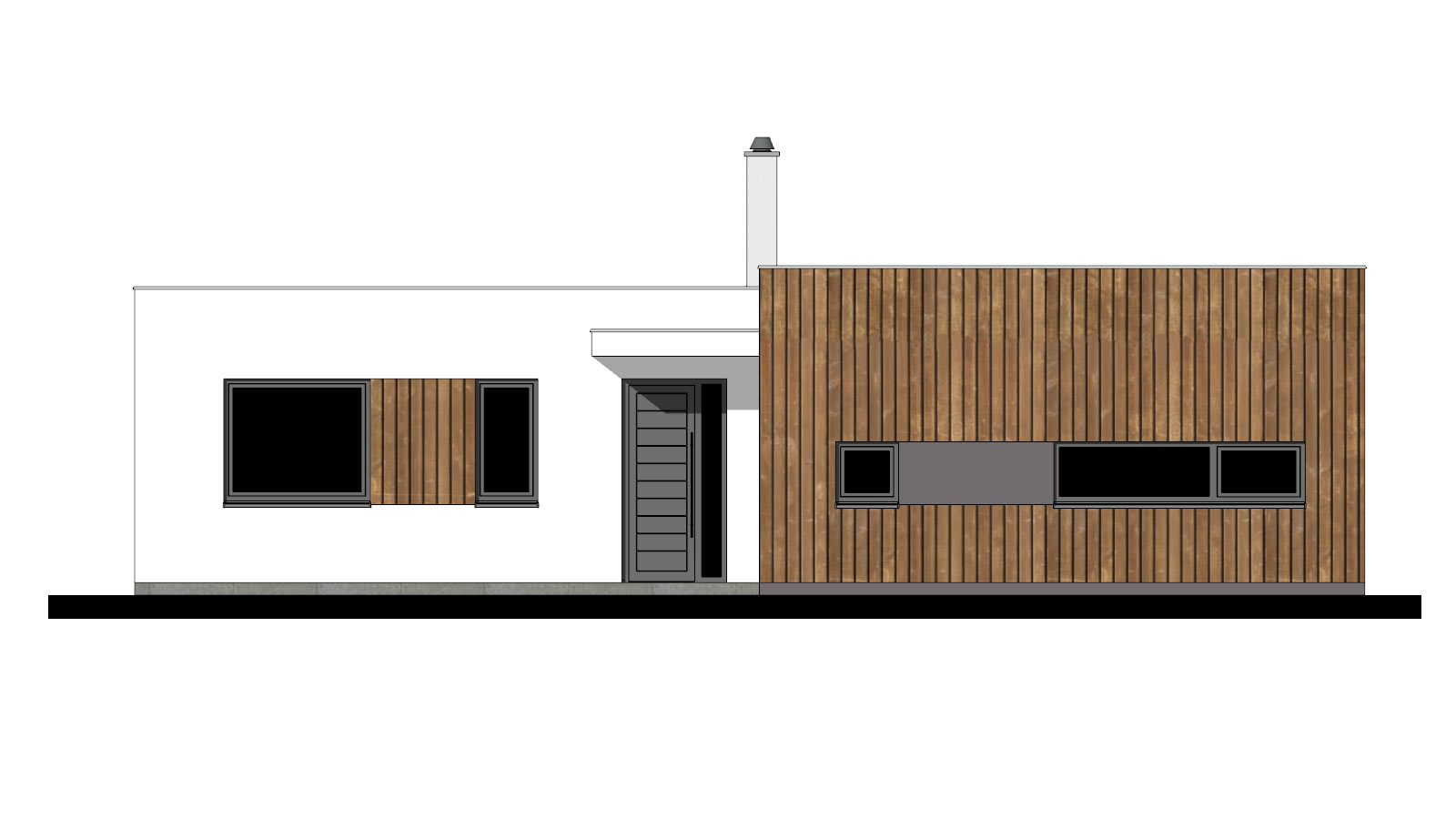

Bungalow L118 - Front elevation
Bungalow L118 - Left elevation
Bungalow L118 - Back elevation
