Plans of Bungalow i65

Family house i65

intro     floor plan    info
Practical 2 bedroom bungalow suitable also as a cottage
A financially affordable bungalow suitable as a weekend house or first house for a young couple.

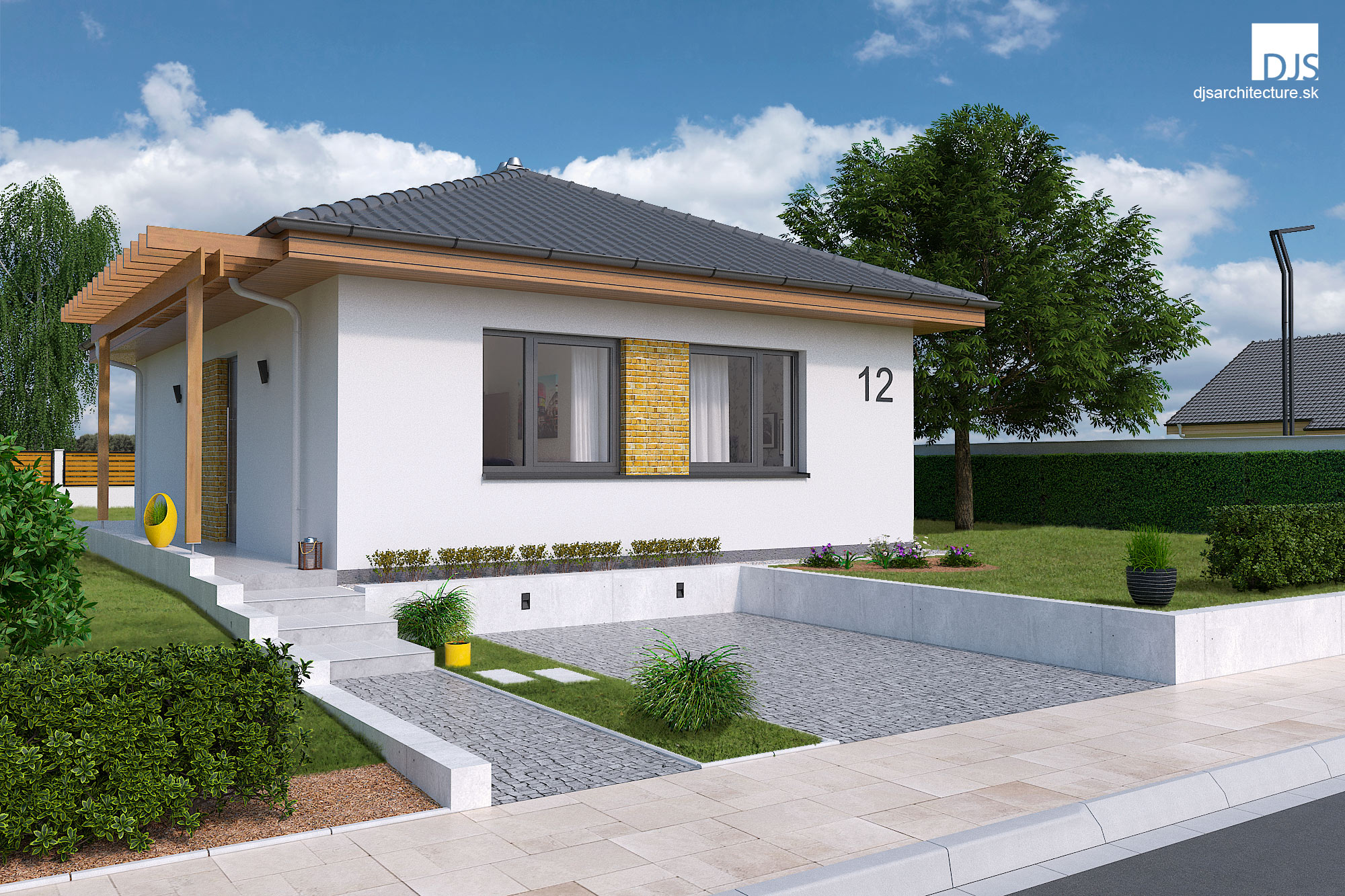

Bungalow i65 - View from street
Bungalow i65 - View from garden
Layout
Smaller, energy efficient bungalow of rectangular shape. It is suitable for sites of width from 11.4 m (clearance 2 m on both sides). Entry hall contains appropriate storage space. Furthermore, there are two bedrooms, bathroom and separate toilet in the house. The living room is combined with kitchen and dining room overlooking the garden and directly connected to the exterior terrace. Kitchen and dining room can be separated from the living room by partition. The house has low energy consumption for heating, optimized construction details and is simple to construct. This two-bedroom house is also suitable as a holiday cottage.

Technical information

Walls are designed from aerated concrete blocks, which can be easily switched for bricks during construction, if desired. The roof is a truss roof and we designed a storage space for seasonal items there. There is floor heating designed in the whole house.

Architectural features
The house is designed as a combination of white plaster in combination with beige brick. The roofing is concrete of grey color, the windows are plastic of anthracite color.

Floor plan

If you would like to modify the floor plan, please contact us. Approximate prices of house modifications can be found in our price list of additional services.Mirrored version of house plan is included in price (optional).
Bungalow i65 - Floor plan
Bungalowi65 - Floor plan - Mirrored
Mirrored floor plan is displayed
Original floor plan is displayed

Parameters

Floor area
66.06 m2
Built-up area
80.29 m2
Roof height
4 450 mm
Roof slope
16°
Number of bedrooms
2
Exterior dimensions
7.4 m x 10.85 m
Material costs
36 000 €
Turnkey construction costs
65 000 €
Architectural study in pdf
80 €  (only digital files)
Architectural study in dwg
250 €  (only digital files)
Construction drawings
1 000 €
Non-binding pre-order

Download more information

For each project you bought from us, we offer site plan drawing as well as the projects of all necessary connections for a discounted price. For further information, please refer to our price list of additional services
More information about this house
House plan i65 - More information
Download floor plan of this house
House i65 - Floor plan in pdf

Elevations

Bungalow i65 - Right elevation

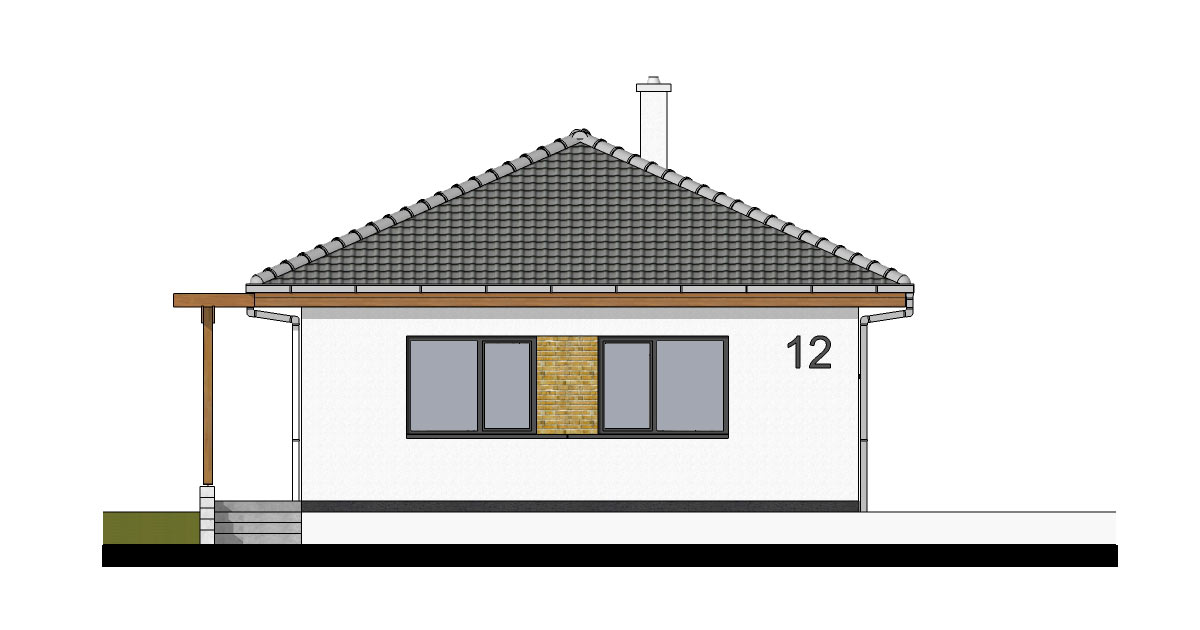

Bungalow i65 - Front elevation
Bungalow i65 - Left elevation
Bungalow i65 - Back elevation
