Family house O105

intro     floor plan    info
Compact energy efficient 3 bedroom bungalow
A lot of storage space in the form of built-in cabinets in each room and storage space in the attic.
Bungalow O105 - View from street
Bungalow O105 - View from garden
Bungalow O105 - Interior
Bungalow O105 - Interior
Layout
Compact energy efficient house suitable for a family of four. The entrance is sheltered against weather by the shape of the house. Inside the house you can find entry hall with a lot of storage space, a large living room connected with kitchen, pantry and a separate toilet, three bedrooms and one bathroom. The living room can be also separated from kitchen by adding a small partition between them. The partially covered terrace is accessible from the living room as well master bedroom. The energy efficiency rating of this bungalow is B. It has been optimized for easy construction.

Technical information
Walls are designed from aerated concrete blocks, which can be easily switched for bricks during construction, if desired. The roof is a truss roof and we designed a storage space for seasonal items there. There is floor heating designed in the whole house.

Architectural features
The house is designed as a combination of white plaster and a brick cladding of red color. The roofing is concrete of grey color, the windows are plastic of anthracite color.

Floor plan

If you would like to modify the floor plan, please contact us. Approximate prices of house modifications can be found in our price list of additional services.Mirrored version of house plan is included in price (optional).
Bungalow O105 - Floor plan
Bungalow O105 - Floor plan - Mirrored
Mirrored floor plan is displayed
Original floor plan is displayed

Parameters

Floor area
103.22 m2
Built-up area
123.70 m2
Roof height
4 885  mm
Roof slope
16°
Number of bedrooms
3
Exterior dimensions
10.0 m x 13.0 m
Material costs
52 000 €
Turnkey construction costs
95 000 €
Architectural study in pdf
80 €  (only digital files)
Architectural study in dwg
250 €  (only digital files)
Construction drawings price
1 100 €
Non-binding pre-order

Download more information

For each project you bought from us, we offer site plan drawing as well as the projects of all necessary connections for a discounted price. For further information, please refer to our price list of additional services
More information about this house
House plan O105 - More information
Download floor plan of this house
House O105 - Floor plan in pdf

Construction photos

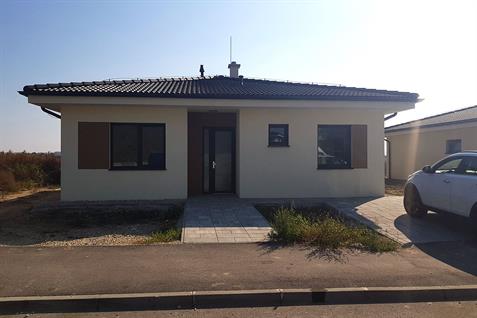

Bungalow O105 - Almost finished construction
Bungalow O105 - Almost finished construction
Bungalow O105 - Almost finished construction
Bungalow O105 - Almost finished construction

Elevations

Bungalow O105 - Right elevation
Bungalow O105 - Front elevation
Bungalow O105 - Left elevation
Bungalow O105 - Back elevation
