Plans of Bungalow L110G

Family house L110G

intro     floor plan    info
Modern L-shaped 3 bedroom bungalow with garage
Bungalow L110 has a total floor area of about 110m2 and three practically designed bedrooms. The fact that the house does not have windows on the side facades makes it suitable for lots from the width of 16.50 m.

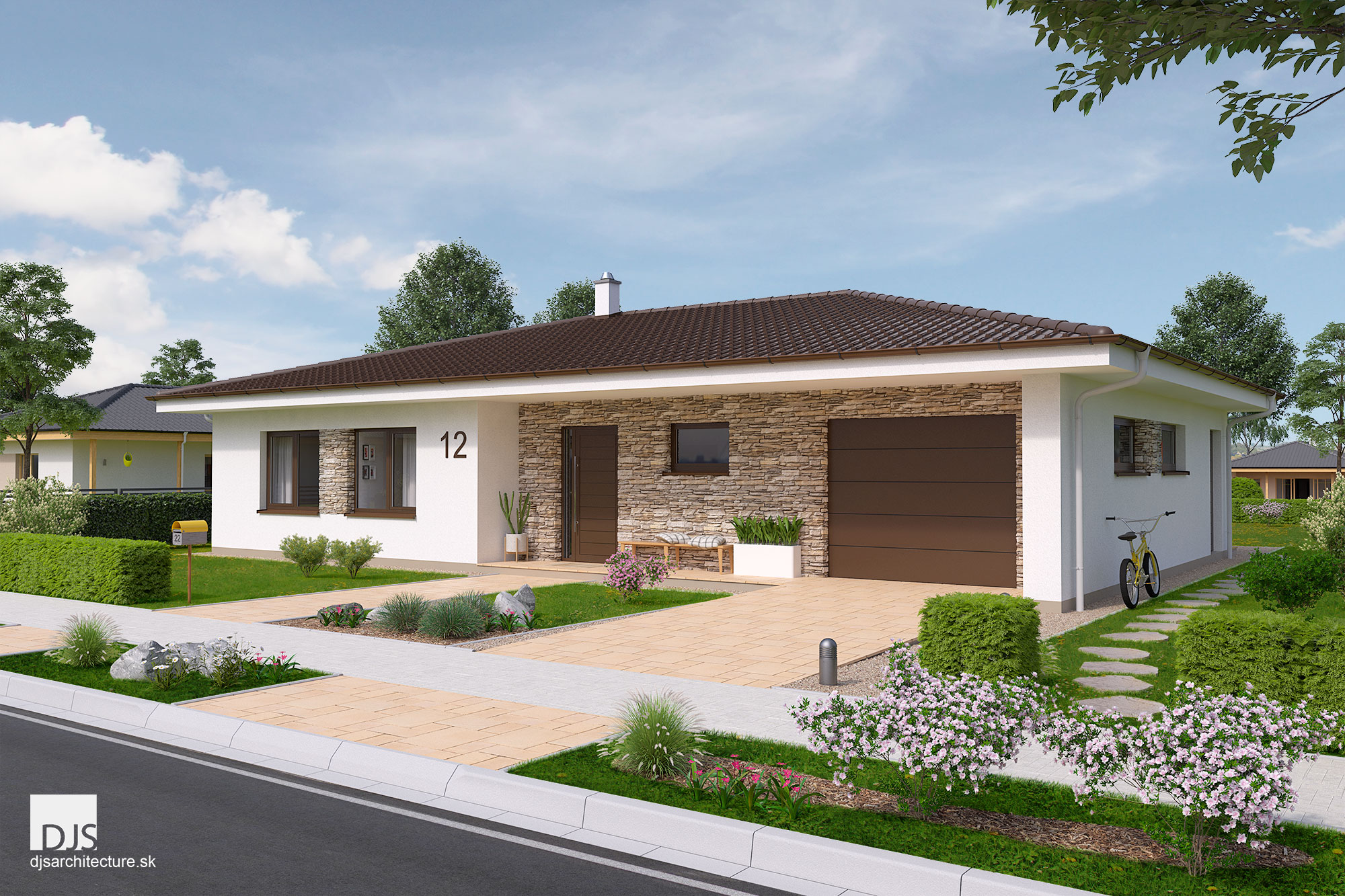

Bungalow L110G - View from street
Bungalow L110G - View from garden
Images from the interior of this house can be found on 3D Tour of house L110.
Layout
The L110G is the bigger version of the 3 bedroom family house L110, to which we added a garage with a garden warehouse. The garage has an internal width of 3.7m, allowing you to comfortably get in and get off the car directly in the garage. In addition, on the rear wall we designed storage space in the form of wall mounted shelves. On the side facade, there are two windows which ensure proper lighting of the garage and at the same time the garage can be ventilated through them. The garden storage is located just behind the garage and is accessible via separate exterior doors. Its size ensures comfortable storage of the mower and other tools needed to maintain the garden.

Technical information
The walls are designed from aerated concrete blocks, which can be easily switched for bricks during construction, if desired. The roof is a truss roof and we designed a storage space for seasonal items there. There is floor heating designed in the whole house.

Architectural features
The house is designed as a combination of white plaster and a stone cladding of beige color. The roofing is concrete of brown color, the windows are plastic of brown color.

Interior

In the kitchen, which is quite spacious, we have designed a bar counter and a space for dining table. The amount of storage space available consists not only of the built-in kitchen cabinets, but there is also a pantry that is immediately on hand. The fireplace is positioned so that it is visible from the living room as well as from the kitchen and dining room. The bathroom walls are clad with elegant stone tiling combined with plaster. In the rooms, wallpapers with different patterns are always placed at least on one wall, which makes rooms appear larger.

Floor plan

If you would like to modify the floor plan, please contact us. Approximate prices of house modifications can be found in our price list of additional services.Mirrored version of house plan is included in price (optional).
Bungalow L110G - Floor plan
Bungalow L110G - Floor plan - Mirrored
Mirrored floor plan is displayed
Original floor plan is displayed

Parameters

Floor area
147.32 m2
Built-up area
185.25 m2
Roof height
5 000 mm
Roof slope
16°
Number of bedrooms
3
Exterior dimensions
16.5 m x 13.4 m
Material costs
72 000 €
Turnkey construction costs
139 000 €
Architectural study in pdf
80 €  (only digital files)
Architectural study in dwg
250 €  (only digital files)
Construction drawings price
1 200 €
Non-binding pre-order

Download more information

For each project you bought from us, we offer site plan drawing as well as the projects of all necessary connections for a discounted price. For further information, please refer to our price list of additional services
More information about this house
House plan L110G - More information
Download floor plan of this house
House L110G - Floor plan in pdf

Elevations

Bungalow L110G - Right elevation
Bungalow L110G - Front elevation
Bungalow L110G - Left elevation
Bungalow L110G - Back elevation
